Brand: Altronix
|
SKU:
10344002

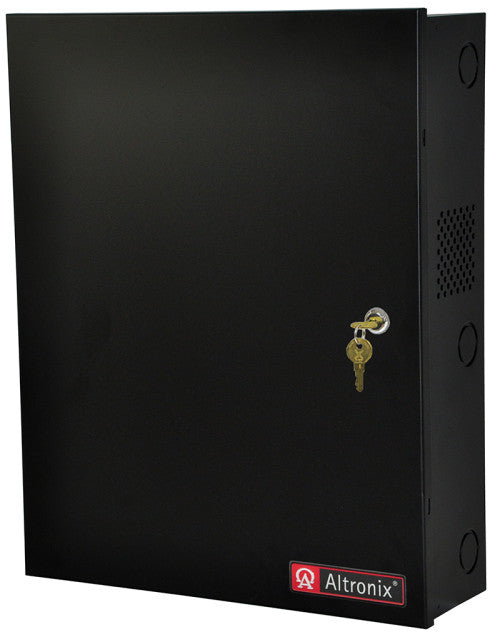

Altronix T1CVK34D | 4-Door Altronix/CDVI Access and Power Integration Kit - Trove1C1 with AL600ULXB, ACM4CB
Regular price
$695.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T1CVK34D | 4-Door Altronix/CDVI Access and Power Integrati...
Regular price
$695.25
Unit price
Description
Description
Altronix T1CVK34D | 4-Door Altronix/CDVI Access and Power Integration Kit - Trove1C1 with AL600ULXB, ACM4CB
Fusing: 5A / 250V.
Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input Fuse: 10A / 32V.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
c) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
24VDC: 77 BTU/Hr.
AL600ULXB Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 3.5A max.Fusing: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 7AH/12VDC (Up to 2 within enclosure) 40AH/65AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
ACM4CB Access Power Controller / Input
12VDC or 24VDC from AL400ULXB2.Input Fuse: 10A / 32V.
Outputs
Voltage: 24VDC.Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
c) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Outputs Ratings
PTCs: 2.5V.Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
12VDC: 40 BTU/Hr.24VDC: 77 BTU/Hr.
Overview
- Altronix T1CVK34D kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) PTC access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T1CVK34D - Overview
- Altronix T1CVK34D kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) PTC access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1CVK34D - Product Categories
- Security
- Access Control
- Panels
Altronix - T1CVK34D - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T1CVK34D |
| Item Description | 4-Door Altronix/CDVI Access and Power Integration Kit - Trove1C1 with AL600ULXB, ACM4CB |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 15.5 Lbs. |
| (7 kg). | Shipping Weight: |
| 19.5 Lbs. | (8.9 kg). |
