Altronix T1CVK3F4 | 4-Door Access and Power Integration Kit - Trove1C1 with eFlow6NB, ACM4

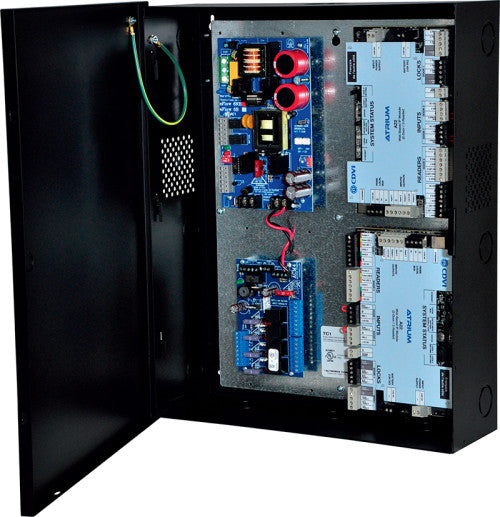

Altronix T1CVK3F4 kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) fused access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T1CVK3F4 kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) fused access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1CVK3F4 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Fusing: 5A / 250V.
- OUTPUT
- Voltage: 12VDC or 24VDC selectable.
- Current: 6A continuous max.
- Auxiliary: Power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A @ 32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- Input: 120VAC is present.
- DC Output: Powered.
- ACM4 Access Power Controller
- INPUT
- Voltage: 12VDC or 24VDC from eFlow6NB.
- Main Fuse: 10A /32V.
- OUTPUT
- Voltage: 24VDC.
- Four (4) independently controlled 2.5A outputs:
- a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
- b) Four (4) dry form “C” 5A rated relay outputs.
- c) Any combination of the above.
- Four (4) auxiliary power outputs (unswitched).
- Output Fuses: 3A / 32VDC.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T1CVK3F4 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
- 1", 3/4" and 1 1/2" knockouts.
Altronix - T1CVK3F4 - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 12VDC: 40 BTU/Hr.
Altronix - T1CVK3F4 - Specifications
| UNSPSC Code | 43211700 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T1CVK3F4 - Weights (approximate)
| Product Weight: | 15.5 Lbs. (7 kg). |
|---|---|
| Shipping Weight | 19.5 Lbs. (8.9 kg). |
Altronix - T1CVK3F4 - Accessories
| WM5 | Magnetic Cable Tie Mounts |
|---|---|
| WM25 | Magnetic Cable Tie Mounts |
| WM100 | Magnetic Cable Tie Mounts |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
