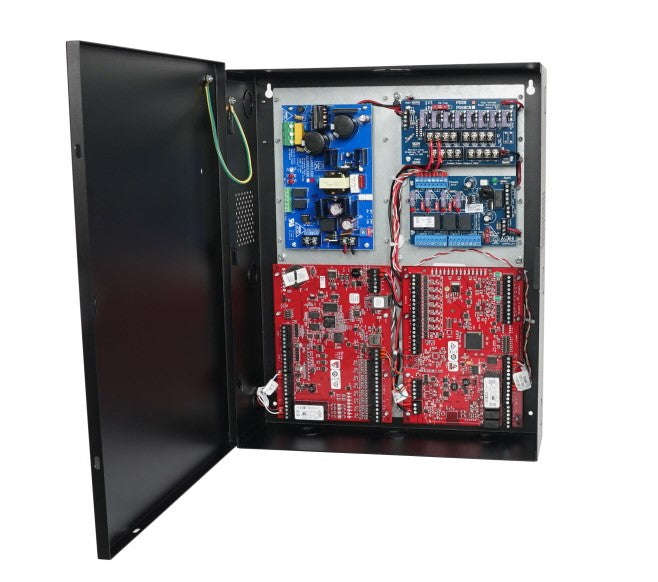

Altronix T1M1LCK1 | 4-Door Altronix/Mercury Access and Power Integration Kit

Altronix T1M1LCK1 is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1LCK1 accommodates one (1) Intelligent Dual Reader Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

Altronix - T1M1LCK1 - Overview

• AL400ULXB2 Power Supply/Charger
• Input
• Voltage: 115VAC, 60Hz, 3.5A max.
• Input Fuse: 5A / 250V.
• Outputs
• Voltage: 12VDC or 24VDC selectable.
• Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Capacity: 7AH/12VDC (Up to 2 within enclosure); 40 AH/65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Fuse Rating: 15A/32V.
• Failover: Upon AC loss, instantaneous.
• Supervision
• AC Failure: Form "C" contacts.
• Battery: Form "C" contacts.
• Indicators LED
• Input: 115VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• PDS8 Dual Input Power Distribution Module
• Input
• Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2.
• Input Fuse: 10A / 32V.
• Outputs
• Voltage: 12VDC and/or 24VDC.
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Outputs Ratings
• Fuses: 3A/32V.
• Indicators (LED's)
• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC.
• Red: 24VDC.
• VR6 Voltage Regulator
• Input
• Voltage: 24VDC from AL400ULXB2.
• Output
• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.
• Indicators LED
• Input: 24VDC is present.
• Output: Powered.
• ACM4 Access Power Controller
• Input
• Voltage: 24VDC from AL400ULXB2.
• Input Fuse: 10A / 32V.
• Outputs
• Voltage: 24VDC.
• Four (4) independently controlled 2.5A outputs:
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• b) Four (4) dry form "C" 5A rated relay outputs.
• c) Any combination of the above.
• Four (4) auxiliary power outputs (unswitched).
• Outputs Ratings
• Fuses: 3A / 32VDC.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• Environmental
• Temperature
• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.):
• 90 BTU/Hr.

Altronix - T1M1LCK1 - Features

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• 1", 3/4" and 1 1/2" knockouts.

Altronix - T1M1LCK1 - Specifications

UNSPSC Code	43211700.0
Sales Category	Power Supply
Agency Listings	CE Compliant
Dimensions (approximate)	14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).

Altronix - T1M1LCK1 - Weights (approximate)

Product Weight	18 Lbs. (8.17 kg).
Shipping Weight	22 Lbs. (9.98 kg).
