Altronix T1M1LCK1D | Power Supply Kit T1MK14SD/Mag/PTC/115VAC
Description
Description

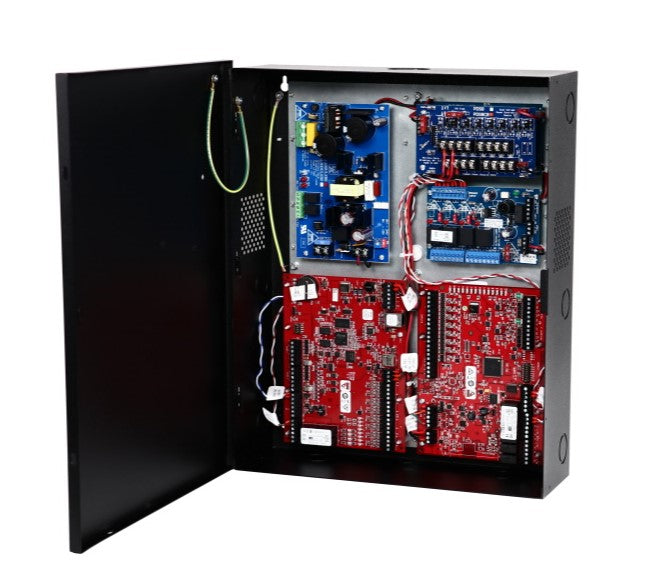

Altronix T1M1LCK1D is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1LCK1D accommodates one (1) Intelligent Dual Reader Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
Altronix - T1M1LCK1D - Features
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- 1", 3/4" and 1 1/2" knockouts.
- Power Supply Kit T1MK14SD/Mag/PTC/115VAC
Specifications
Specifications
Altronix - T1M1LCK1D - Overview
- AL400ULXB2 Power Supply/Charger
- Input
- Voltage: 115VAC, 60Hz, 3.5A max.
- Input Fuse: 5A / 250V.
- Outputs
- Voltage: 12VDC or 24VDC selectable.
- Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 7AH/12VDC (Up to 2 within enclosure); 40 AH/65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32V.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form "C" contacts.
- Battery: Form "C" contacts.
- Indicators LED
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- PDS8CB Dual Input Power Distribution Module
- Input
- Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2.
- Input PTC: 9A.
- Outputs
- Voltage 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- PTCs 2.5A.
- Indicators LED
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
- VR6 Voltage Regulator
- Input
- Voltage: 24VDC from AL400ULXB2.
- Output
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- ACM4CB Access Power Controller
- Input
- 24VDC from AL400ULXB2.
- Input Fuse: 10A / 32V.
- Outputs
- Voltage: 24VDC.
- Four (4) independently controlled 2.5A outputs:
- a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
- b) Any combination of the above.
- Four (4) auxiliary power outputs (unswitched).
- Outputs Ratings
- PTCs: 2.5A.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 90 BTU/Hr.
Altronix - T1M1LCK1D - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D). |
Altronix - T1M1LCK1D - Weights (approximate)
| Product Weight | 18 Lbs. (8.17 kg). |
|---|---|
| Shipping Weight | 22 Lbs. (9.98 kg). |
