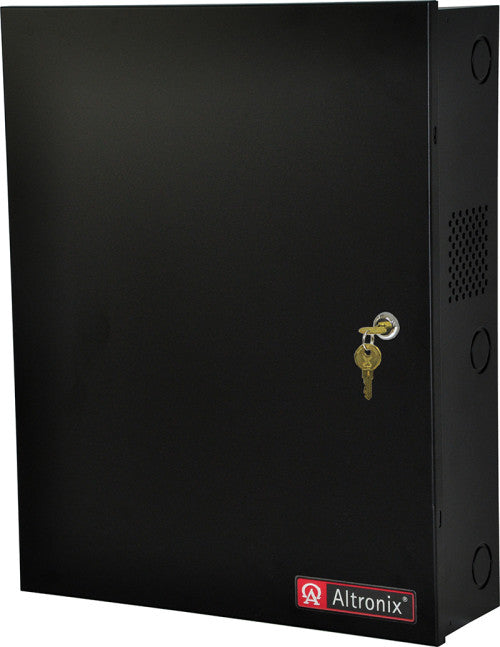

Altronix T1MK14 | 4-Door Access and Power Integration Kit - Trove1M1 with AL400ULXB2, ACM4, VR6

$747.77

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix T1MK14 | 4-Door Access and Power Integration Kit - Trove1M1 with AL400ULXB2, ACM4, VR6

Altronix T1MK14 kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage regulator and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Altronix - T1MK14 - Features and Specifications

Power Supply/Chargers
INPUT
Voltage: 115VAC, 60Hz, 3.5A max.
Fusing: 5A / 250V.
OUTPUT
Voltage: 12VDC or 24VDC selectable.
Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
VR6 Voltage Regulator
INPUT
Voltage: 24VDC from AL400ULXB2.
OUTPUT
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators (LED)
Input: 24VDC is present.
Output: Powered.
ACM4 Access Power Controller
INPUT
Voltage: 24VDC from AL400ULXB2.
Input Fuse: 10A / 32V.
OUTPUT
Voltage: 24VDC.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Four (4) dry form “C” 5A rated relay outputs.
c) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Outputs Ratings
Fuses: 3A / 32VDC.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.

Specifications

Altronix - T1MK14 - Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
1", 3/4" and 1 1/2" knockouts.

Altronix - T1MK14 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 90 BTU/Hr.

Altronix - T1MK14 - Specifications

UNSPSC Code	39120000
Agency Listing	CE Compliant

Altronix - T1MK14 - Weights (approximate)

Product Weight:	16.23 Lbs. (7.36 kg).
Shipping Weight	20.23 Lbs. (9.07 kg).

Altronix - T1MK14 - Accessories

MM12	Mounting Magnets, Twelve (12) Quantity per Pack
MM24	Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4	Mounting Magnets, Four (4) Quantity per Pack
MM8	Mounting Magnets, Eight (8) Quantity per Pack
WM100	Magnetic Cable Tie Mounts
WM25	Magnetic Cable Tie Mounts
WM5	Magnetic Cable Tie Mounts
