Altronix T1MK1F4 | 4-Door Access and Power Integration Kit - Trove1M1 with eFlow4NB, ACM4, VR6

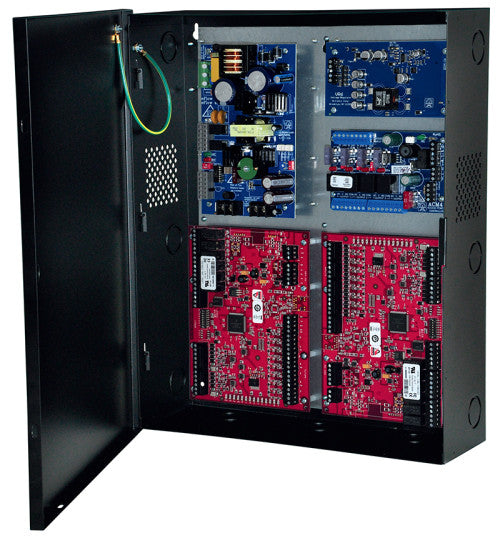

Altronix T1MK1F4 Trove Mercury kit is pre-assembled and consists of Trove1M1 enclosure/ backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. *Compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix T1MK1F4 Trove Mercury kit is pre-assembled and consists of Trove1M1 enclosure/ backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. *Compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix - T1MK1F4 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz.
- Fusing: 5A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Current: 4A continuous.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup
- Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 7.5A/32V.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
- VR6 Voltage Regulator
- INPUT
- Voltage: 24VDC from eFlow4NB.
- OUTPUT
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators (LED)
- Input: 24VDC is present.
- Output: Powered.
- ACM4 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow4NB.
- Input Fuse: 10A / 32V.
- OUTPUT
- Voltage: 24VDC.
- Four (4) independently controlled 2.5A outputs:
- a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
- b) Four (4) dry form “C” 5A rated relay outputs.
- c) Any combination of the above.
- Four (4) auxiliary power outputs (unswitched).
- Outputs Ratings
- Fuses: 3A / 32VDC.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T1MK1F4 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
- 1", 3/4" and 1 1/2" knockouts.
Altronix - T1MK1F4 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 90 BTU/Hr.
Altronix - T1MK1F4 - Specifications
| UNSPSC Code | 43211700 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T1MK1F4 - Weights (approximate)
| Product Weight: | 16.23 Lbs. (7.36 kg). |
|---|---|
| Shipping Weight | 20.23 Lbs. (9.07 kg). |
Altronix - T1MK1F4 - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
