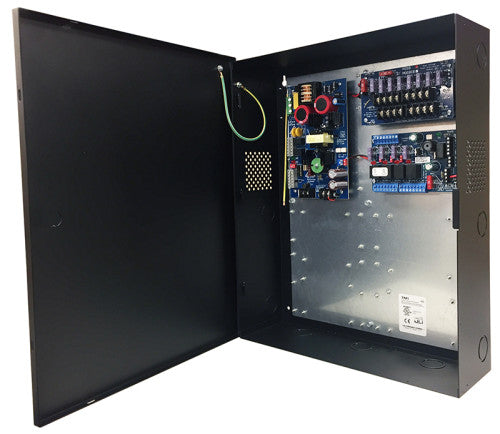

Altronix T1MK1F4S | 4-Door Access and Power Integration Kit - Trove1M1 with eFlow4NB, ACM4, PDS8, VR6

Altronix - T1MK1F4S - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz.
• Fusing: 5A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Current: 4A continuous.
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup
• Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Fuse Rating: 7.5A/32V.
• Failover: Upon AC loss, instantaneous.
• Supervision
• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
• VR6 Voltage Regulator
• INPUT
• Voltage: 24VDC from eFlow4NB.
• OUTPUT
• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.
• Indicators (LED)
• Input: 24VDC is present.
• Output: Powered.
• ACM4 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow4NB.
• Fusing: 10A / 32V.
• OUTPUT
• Voltage: 24VDC.
• Four (4) independently controlled 2.5A outputs:
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• b) Four (4) dry form “C” 5A rated relay outputs.
• c) Any combination of the above.
• Four (4) auxiliary power outputs (unswitched).
• Outputs Ratings
• Fuses: 3A / 32VDC.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• PDS8 Dual Input Power Distribution Module
• INPUT
• Voltage: 12VDC from VR6 and 24VDC from eFlow4NB.
• Main Fuse Rating: 10A / 32V.
• OUTPUT
• Voltage: 12VDC and/or 24VDC.
• Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Outputs Ratings
• Fuses: 3A / 32V.
• Indicators (LED)
• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC
• Red: 24VDC.
