Brand: Altronix
|
SKU:
10038988
Altronix T1PDK7F24 | 24-Door Access and Power Integration Kit - Trove1PD1 with eFlow104NB
Regular price
$690.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T1PDK7F24 | 24-Door Access and Power Integration Kit - Tro...
Regular price
$690.25
Unit price
Description
Description

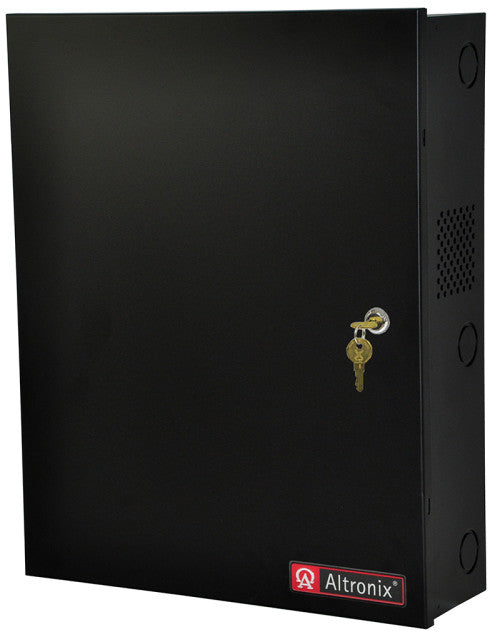

Altronix T1PDK7F24 | 24-Door Access and Power Integration Kit - Trove1PD1 with eFlow104NB
Altronix T1PDK7F24 kit consists of Trove1 enclosure, TPD1 PDK/Altronix backplane with one (1) 24VDC @ 10A power supply/charger. This kit also accommodates up to three (3) PDK PM-07-EIOE-E modules for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T1PDK7F24 kit consists of Trove1 enclosure, TPD1 PDK/Altronix backplane with one (1) 24VDC @ 10A power supply/charger. This kit also accommodates up to three (3) PDK PM-07-EIOE-E modules for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1PDK7F24 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.5A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Current: 10A continuous.
- Auxiliary: Class 2 power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- Input: 120VAC is present.
- DC Output: Powered.
Specifications
Specifications
Altronix - T1PDK7F24 - Dimensions (approximate)
- 18"W x 14.5"L x 4.62"H (457.2 mm W x 368.3 mm L x 118 mm H).
Altronix - T1PDK7F24 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 12VDC: 128 BTU/Hr.
Altronix - T1PDK7F24 - Specifications
| UNSPSC Code | 43211700 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T1PDK7F24 - Weights (approximate)
| Product Weight: | 15.5 Lbs. (7 kg). |
|---|---|
| Shipping Weight | 19.5 Lbs. (8.9 kg). |
Altronix - T1PDK7F24 - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
