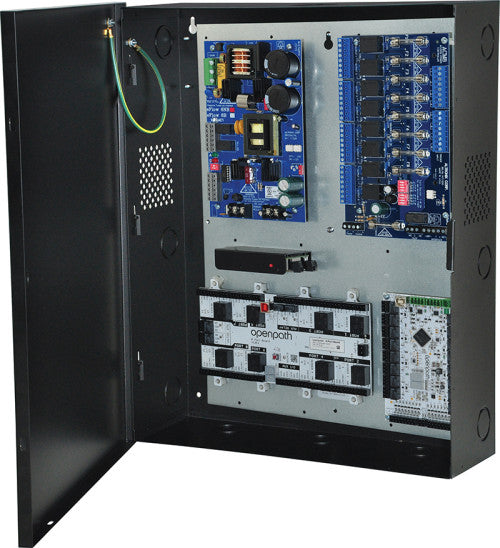

Altronix T1PHK3F8 | 8-Door Access and Power Integration Kit - Trove1C1 with eFlow6NB, ACM8. Trove1 Series
Regular price
$810.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T1PHK3F8 | 8-Door Access and Power Integration Kit - Trove...
Regular price
$810.29
Unit price
Description
Description
Altronix T1PHK3F8 | 8-Door Access and Power Integration Kit - Trove1C1 with eFlow6NB, ACM8. Trove1 Series
Altronix T1PHK3F8 kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC or 24VDC @ 6A power supply/charger, one (1) fused access power controller. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T1PHK3F8 kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC or 24VDC @ 6A power supply/charger, one (1) fused access power controller. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T1PHK3F8 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz.
- Input Fuse: 5A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Current: 6A continuous.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 7AH/12VDC (Up to 2 within enclosure). 40 AH/65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A @ 32V.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
- ACM8 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow6NB.
- Input Fuse: 10A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Indicators (LED's)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T1PHK3F8 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
- 1", 3/4" and 1 1/2" knockouts.
Altronix - T1PHK3F8 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 12VDC: 40 BTU/Hr.
Altronix - T1PHK3F8 - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T1PHK3F8 - Weights (approximate)
| Product Weight: | 15.5 Lbs. (7 kg). |
|---|---|
| Shipping Weight | 19.5 Lbs. (8.9 kg). |
Altronix - T1PHK3F8 - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
