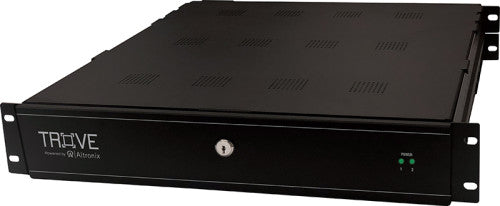

Altronix T1RAL13F8P8 | Access and Power Integration Kit - Trove1AL1R with eFlow6NB, eFlow4NB, ACM8, PD8UL

Altronix - T1RAL13F8P8 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Fusing: 5A / 250V.
• OUTPUT
• Voltage: Factory set: 24VDC.
• Current: 6A continuous.
• Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, ACM8 Access Power Controller outputs is 5.6A.
• Auxiliary: Class 2 power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Power Supply/Charger
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Main Fuse: 5A / 250V.
• Both Power Supplies
• Battery Backup
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non-latching.
• EOL: 10K Resistor.
• Supervision
• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
• Indicators (LED)
• Input: 120VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• ACM8 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow6NB.
• Input Fuse: 10A / 32V.
• OUTPUT
• Voltage: 24VDC.
• Eight (8) independently controlled 2.5A outputs:
• a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
• b) Eight (8) dry form “C” 5A rated relay outputs.
• c) Any combination of the above.
• Eight (8) auxiliary power outputs (unswitched).
• Outputs Ratings
• Fuses: 3A/32VDC.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• PD8UL Power Distribution Module
• INPUT
• Voltage: 12VDC from eFlow4NB.
• Outputs
• Class 2 power-limited auto-resettable outputs.
• Voltage: 12VDC.
• PTCs: 2.5A.
• Indicators (LED)
• Green LED: DC Output.
