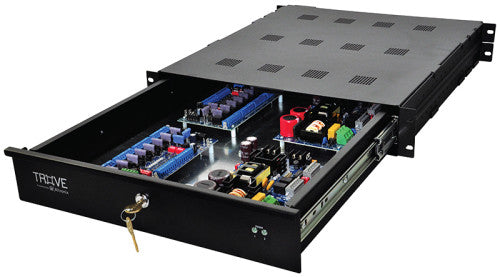

Altronix T1RAL33F16 | Access and Power Integration Kit - Trove1AL1R with 2-eFlow6NB, 2-ACMS8

Altronix - T1RAL33F16 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 7A max.
• Fusing: 5A / 250V.
• OUTPUT
• Voltage: Factory set: one (1) eFlow6NB at 12VDC and one (1) at 24VDC.
• Current: 6A continuous.
• Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply boards and ACMS8 Access Power Controller's outputs is 5.3A @ 12VDC and 5.6A @ 24VDC.
• Auxiliary: Class 2 power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non latching.
• EOL: 10K Resistor.
• Indicators LED
• Input: 120VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• Two (2) ACMS8 Access Power Controllers
• INPUT
• Voltage: 24VDC from one eFlow6NB and 12VDC from another.
• Fusing: 15A / 32V.
• OUTPUT
• Voltage: 12 or 24VDC individually selectable.
• Eight (8) selectable 12VDC or 24VDC independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs:
• a) Fail-Safe and/or Fail-Secure power outputs.
• b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
• c) Auxiliary power outputs (unswitched).
• d) Any combination of the above.
• Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Output Fuses: 3A / 32VDC.
• Indicators (LED's)
• Voltage: 24VDC from one eFlow6NB and 12VDC from another.
• Fusing: 15A / 32V.
• Individual voltage LEDs
• Green: 12VDC
• Red/Green: 24VDC
