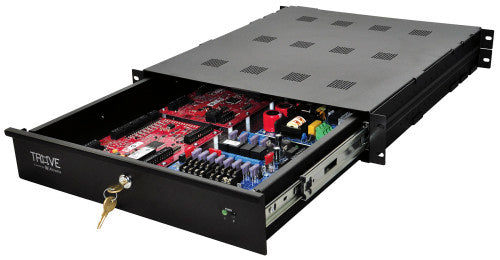

4-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1R with eFlow6NBV, ACM4CB, PDS8CB, VR6. Altronix T1RM3F4V kit consists of Trove1R enclosure and TM1R Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power su pply/charger, 12VDC voltage regulator, eight (8) output fused dual output power distribution module and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labour costs.

eFlow6NBV Power Supply/Charger / Input

Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A.
Fusing: 5A / 250V.

Output

Voltage: Factory set at 24VDC.
Current: 6A continuous.
Maximum Supply Current for Main and Aux. Outputs on eFlow6NBV Power Supply board, PDS8 Power Distribution Module’s and ACM4 Access Power Controller’s outputs is 5.6A.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.

Battery Backup

Type: Sealed lead acid or gel type.
Fuse Rating: 10A @ 32VDC.
Failover: Upon AC loss, instantaneous.

Fire Alarm Disconnect

Supervised: Latching or non latching.
EOL: 10K Resistor.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.

Indicators LED

Input: 220VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

PDS8 Power Distribution Module / Input

Voltage: 24VDC from eFlow6NBV and 12VDC from VR6.
Input Fuse: 10A / 250V.

Outputs

Voltage: 12 or 24VDC individually selectable.
Output Fuses: 3A / 32VDC.

Indicators (LED)

DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.

VR6 Voltage Regulator / Input

Voltage: 24VDC from eFlow6NBV.

Outputs

Voltage: 12 or 24VDC individually selectable.
Output Fuses: 3A / 32VDC.

Indicators (LED)

DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.

ACM4 Access Power Controller / Input

Voltage: 24VDC from eFlow6NBV.
Fusing: 10A / 250V.

Output

Voltage: 24VDC.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Four (4) dry form “C” 5A rated relay outputs.
c) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Output Fuses: 3A / 32VDC.

Indicators (LED's)

Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

115 BTU/Hr.
