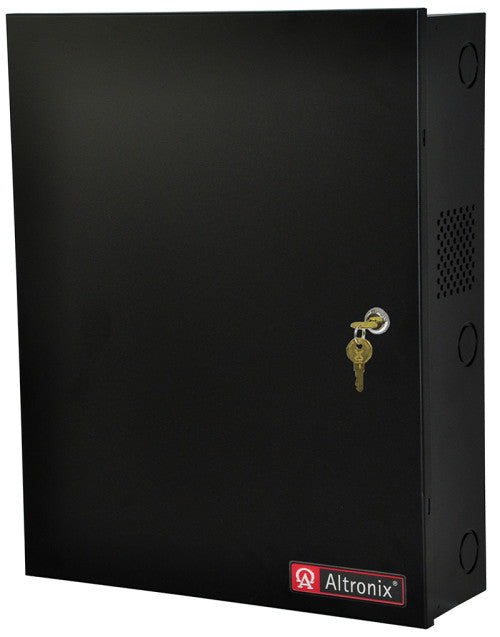

Altronix T1SAK3F4 | 4-Door Access and Power Integration Kit - Trove1SA1 with eFlow6NB, ACM4, VR6, PDS8

Altronix - T1SAK3F4 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Fusing: 5A / 250V.
• OUTPUT
• Voltage: 12VDC or 24VDC selectable.
• Current: 6A continuous max.
• Auxiliary: Power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non latching.
• EOL: 10K Resistor.
• Indicators LED
• Input: 120VAC is present.
• DC Output: Powered.
• PDS8 Dual Input Power Distribution Module
• INPUT
• Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
• Main Fuse: 10A / 32V.
• OUTPUT
• Voltage: 12VDC and/or 24VDC.
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Output Fuses: 3A / 32V.
• Indicators (LED)
• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC
• Red: 24VDC.
• VR6 Voltage Regulator
• INPUT
• Voltage: 24VDC from eFlow6NB.
• OUTPUT
• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.
• Indicators LED
• Input: 24VDC is present.
• Output: Powered.
• ACM4 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow6NB.
• Main Fuse: 10A / 32V.
• Outputs
• Voltage: 24VDC.
• Four (4) independently controlled 2.5A outputs:
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• b) Four (4) dry form “C” 5A rated relay outputs.
• c) Any combination of the above.
• Four (4) auxiliary power outputs (unswitched).
• Output Rating: 3A / 32VDC.
• Indicators (LED's)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
