Brand: Altronix | SKU: 10062026

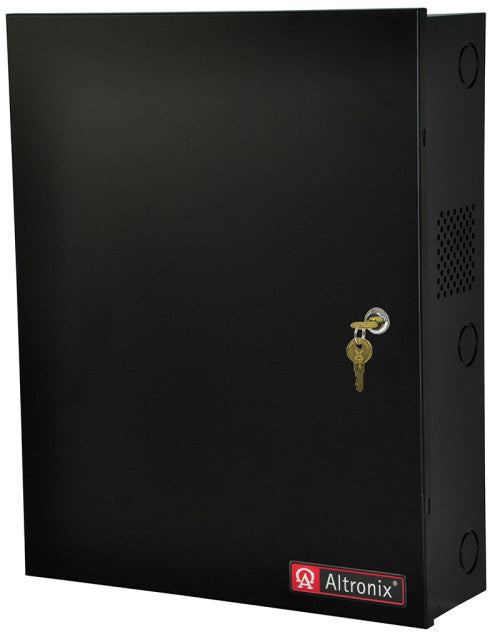

Altronix T1VK3F4 | 4-Door Access and Power Integration Kit - Trove1V1 with eFlow6NB, VR6, PDS8

$854.07

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix T1VK3F4 | 4-Door Access and Power Integration Kit - Trove1V1 with eFlow6NB, VR6, PDS8

Altronix T1VK3F4 kit consists of Trove1 enclosure, TV1 VertX/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates up to two (2) HID VertX modules for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Altronix - T1VK3F4 - Features and Specifications

Power Supply/Chargers
INPUT
Voltage: 120VAC, 60Hz, 3.5A max.
Fusing: 5A / 250V.
OUTPUT
Voltage: 12VDC or 24VDC selectable.
Current: 6A continuous max.
Auxiliary: Power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Backup (not included)
Type: Sealed lead acid or gel type.
Fuse Rating: 10A @ 32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non latching.
EOL: 10K Resistor.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
VR6 Voltage Regulator
INPUT
Voltage: 24VDC from eFlow6NB.
OUTPUT
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
PDS8 Dual Input Power Distribution Module
INPUT
Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
Main Fuse: 10A / 32V.
OUTPUT
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32V.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.

Specifications

Altronix - T1VK3F4 - Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
1", 3/4" and 1 1/2" knockouts.

Altronix - T1VK3F4 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 12VDC: 40 BTU/Hr.

Altronix - T1VK3F4 - Specifications

UNSPSC Code	24102001
Agency Listing	CE Compliant

Altronix - T1VK3F4 - Weights (approximate)

Product Weight:	15.5 Lbs. (7 kg).
Shipping Weight	19.5 Lbs. (8.9 kg).

Altronix - T1VK3F4 - Accessories

LINQ2	Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
MM12	Mounting Magnets, Twelve (12) Quantity per Pack
MM24	Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4	Mounting Magnets, Four (4) Quantity per Pack
MM8	Mounting Magnets, Eight (8) Quantity per Pack
WM100	Magnetic Cable Tie Mounts
WM25	Magnetic Cable Tie Mounts
WM5	Magnetic Cable Tie Mounts
