Brand: Altronix | SKU: 996861

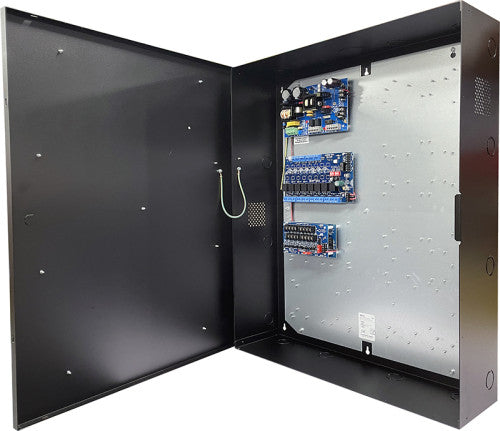

Altronix T2MK3F8D | 8-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with eFlow6NB, ACM8CB, VR6, PDS8CB

$1,149.17

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix T2MK3F8D kit consists of Trove2 enclosure and TM2 Mercury/Altronix backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual voltage power distribution module and eight (8) PTC protected output access control module. This kit also accommodate various combinations of Mercury boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Specifications

Dimensions (approximate)

27.25"W x 21.75"L x 6.5"H (692.15 mm W x 546.1 mm L x 165.1 mm H).

eFlow6NB Power Supply/Charger

Input
Voltage: 120VAC, 60Hz.
Input Fuse: 5A / 250V.
Output
Voltage: 24VDC.
Current: 6A continuous.
Other: Overvoltage protection. Filtered and regulated.

Battery Backup (not included)

Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Fuse Rating: 10A/32V.
Failover: Upon AC loss, instantaneous.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. (depending on the power supply). Prevents deep battery discharge.

Indicators LED

Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

PDS8CB Dual Input Power Distribution Module

Input
Voltage: 12VDC from VR6 and 24VDC from eFlow6NB.
Input PTC Rating: 9A.
Outputs
Class 2 power-limited auto-resettable outputs.
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.

Weights (approximate)

Product Weight	39.6 Lbs. (18 kg).
Shipping Weight	43.35 Lbs. (19.66 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CAN/ULC - s319-05, Electronic Access Control Systems.	https://iq.ulprospector.com/en/profile?e=1659
