Altronix T2MK7F8 | 8-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with eFlow104NB, ACM8, VR6, PDS8

$1,215.44

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

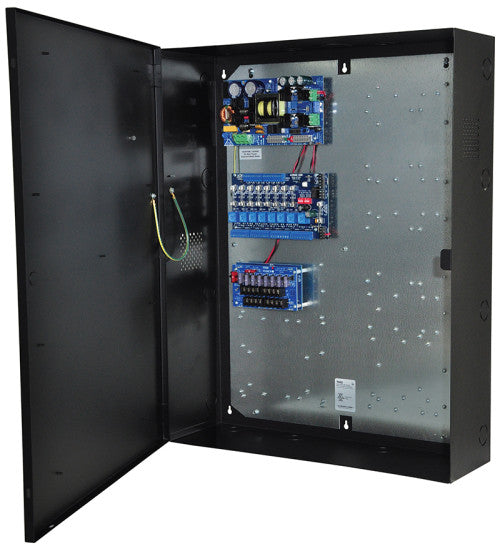

Altronix T2MK7F8 kit consists of Trove2 enclosure and TM2 Mercury/Altronix backplane with 24VDC @ 10A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and eight (8) fuse protected output access control module. This kit also accommodates various combinations of Mercury boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Specifications

Dimensions (approximate)

27.25"W x 21.75"L x 6.5"H (692.15 mm W x 546.1 mm L x 165.1 mm H).

eFlow104NB Power Supply/Charger

Input
Voltage: 120VAC, 60Hz, 4.5A max.
Main Fuse: 6.3A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.

Battery Backup (not included)

Type: Sealed lead acid or gel type.
Fuse Rating: 10A @ 32VDC.
Failover: Upon AC loss, instantaneous.

Fire Alarm Disconnect

Supervised: Latching or non-latching.
EOL: 10K Resistor.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators LED

AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.

Weights (approximate)

Product Weight	40.1 Lbs. (18.19 kg).
Shipping Weight	43.85 Lbs. (19.9 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CAN/ULC - s319-05, Electronic Access Control Systems.	https://iq.ulprospector.com/en/profile?e=1659
