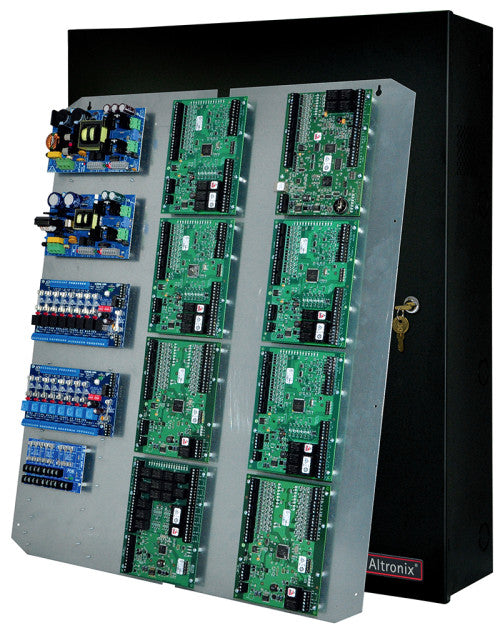

Altronix T3MK75F16 | 16-Door Access and Power Integration Kit - Trove3M3 with eFlow102NB, eFlow104NB, 2-ACM8, PD8UL, RSB2

Altronix - T3MK75F16 - Features and Specifications

• Power Supply/Charger - 1
• INPUT
• Voltage: 120VAC, 60Hz, 4.5A max.
• Main Fuse: 6.5A / 250V.
• OUTPUT
• Voltage: 24VDC @ 10A.
• Auxiliary: 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Power Supply/Charger - 2
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Main Fuse: 5A / 250V.
• Both Power Supplies
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 15A/32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non-latching.
• EOL: 10K Resistor.
• Supervision
• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
• Indicators LED
• AC Input: 120VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• Two (2) ACM8 Access Power Controllers
• INPUT
• Voltage: 24VDC from eFlow104NB.
• Input Fuse: 10A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Eight (8) 24VDC independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 250V.
• Indicators LED
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• PD8UL Power Distribution Module
• INPUT
• Voltage: 12VDC from eFlow104NB.
• Outputs
• Voltage: 12VDC.
• Fuses: 3.5A/250V.
• Indicators LED
• Green LED: DC Output.
