Altronix TAM2 | Trove2 Backplane for Altronix/AMAG
Regular price
$225.05
Unit price
Brand: Altronix
|
SKU:
1030433
Regular price
$225.05
Unit price
Description
Description

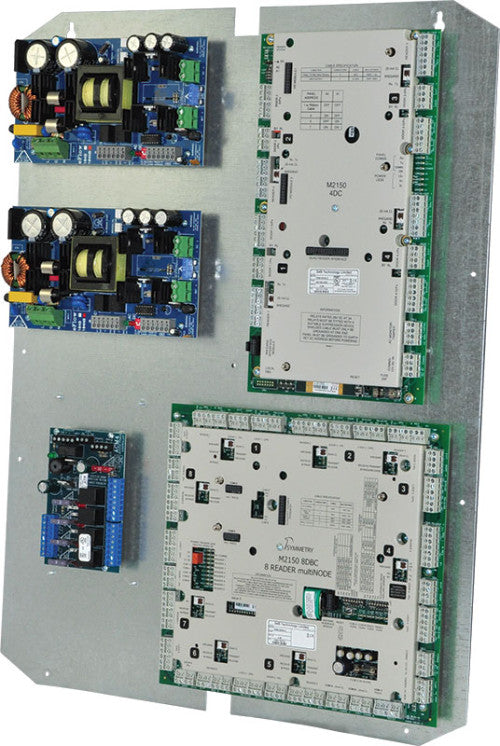

TAM2 accommodates various combinations of AMAG boards with or without Altronix power supplies and accessories for access systems.
Main Features
- 16 AWG backplane.
- Includes mounting hardware.
- Accommodates the following AMAG Symmetry controllers with or without Altronix power/accessories:
- M2150 2DC, M2150 4DC or M2150 AC24/4, M2150 2DBC, M2150 4DBC or M2150 8DBC
- Altronix Power Supplies.
- Altronix Sub-Assemblies.
- Simplifies board layout and wire management
- 16 AWG galvanized steel
Specifications
Specifications
Dimensions (approximate)
- 0.3125"W x 19.375"L x 25.375"H (7.94 mm W x 492.12 mm L x 644.52 mm H).
Weights (approximate)
| Product Weight | 8 Lbs. (3.63 kg). |
|---|---|
| Shipping Weight | 10 Lbs. (4.53 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CAN/ULC - s319-05, Electronic Access Control Systems. | https://iq.ulprospector.com/en/profile?e=1659 |
