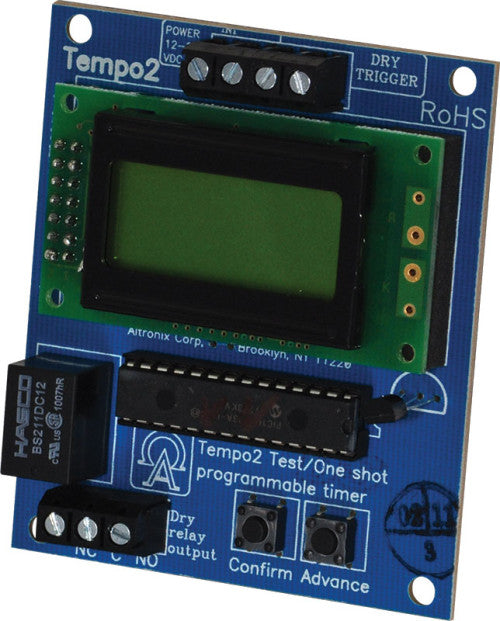

Altronix TEMPO2 | Timer, Universal 2 Stage, 12 - 24VAC/VDC
Altronix TEMPO2 | Timer, Universal 2 Stage, 12 - 24VAC/VDC

Altronix TEMPO2 | Timer, Universal 2 Stage, 12 - 24VAC/VDC

Part Number: ALT-TEMPO2
0 Review(s)
Write a Review
Availability:
$46.56
Retail Price:$49.21
Your Savings:$2.65(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Tempo2 is a universal two stage timer for applications that require timed operations. A delayed egress feature will trigger a 1 to 60 second door release. Applications include daily/weekly test mode, one shot, door prop alarm, timed door annunciate, cut-off timer, alarm swinger eliminator, etc. Digital display facilitates ease of programming and real time information.


https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions (approximate)

  • 2.5"W x 3"L x 0.75"H (63.5 mm W x 76.2 mm L x 19.05 mm H).



https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • EE Prom memory protects against loss of programming due to power failure.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • 12 to 24 volts AC or DC operation



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Relay

  • Triggers via dry contact.
  • Dry form "C" contacts are rated @ 2A/120VAC/28VDC.
  • Current draw: stand-by 15mA, relay energized 30mA.
  • Simple programming. One-Shot Features (trigger activated):
  • Programmable relay activation at the start or end of the timing cycle
  • a) Delayed Pulse Mode:
  • 1 to 60 sec. programmable pulse at the end of timing cycle.
  • b) Delay Mode:
  • Relay can be programmed to energize or de-energize during timing cycle (Digitally adjust from 1 sec. -24hours).



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Visual Indicators

  • LCD displays real time countdown information.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Temperature

  • Operating -20ºC to 49ºC ( -4ºF to 120ºF).
  • Storage -25ºC to 70ºC ( -13ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight0.65 Lbs. (0.29 kg).
Shipping Weight1.25 Lbs. (0.566 kg).



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix TEMPO2 Data SheetClick to View
Altronix TEMPO2 Data SheetClick to View
Altronix TEMPO2 Installation InstructionsClick to View
Altronix TEMPO2 CAD DrawingClick to View
Altronix TEMPO2 Mounting DiagramClick to View
Altronix TEMPO2 Lifetime WarrantyClick to View
