Description
Description

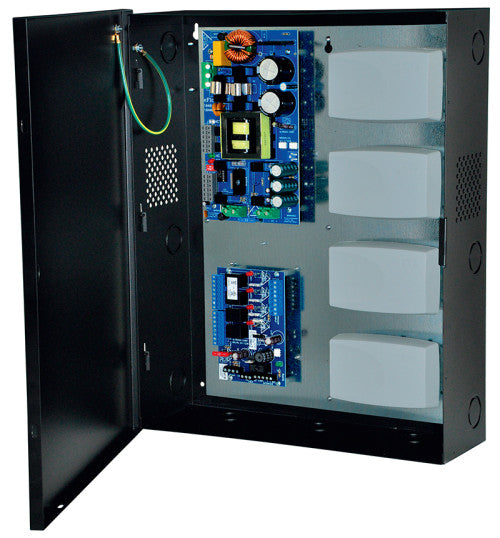

Altronix Trove1DM1 consists of a high-capacity enclosure with removable backplane. This unit easily combines Altronix power/accessories with various combinations of DMP 734 Wiegand Modules in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.
Specifications
Specifications
Dimensions (approximate)
- 18"W x 14.5"L x 4.625"H (457.2 mm W x 368.3 mm L x 117.5 mm H).
Trove1 enclosure with TDM1 Altronix/DMP backplane
- Backplane accommodates a combination of DMP 734 and 734N Wiegand modules with or without Altronix power/accessories:
- - DMP 734 and 734N Wiegand modules
- - Altronix Power Supplies
- - Altronix Sub-Assemblies
- Includes Altronix Trove1 Enclosure and one (1) removable TDM1 backplane
Trove1 Enclosure
- 16 AWG powder coated steel enclosure.
- Convenient knockout configuration:
- - One (1) double knockout 1.948” (1-1/2” Conduit) / 1.701” (1-1/4” Conduit).
- - Nine (9) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
- Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
Weights (approximate)
| Product Weight | 15.15 Lbs. (6.87 kg). |
|---|---|
| Shipping Weight | 19.05 Lbs. (8.64 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CAN/ULC - s319-05, Electronic Access Control Systems. | https://iq.ulprospector.com/en/profile?e=1659 |
Documents and Downloads
Documents and Downloads
- Altronix TROVE1DM1 Data Sheet
- Altronix TROVE1DM1 Data Sheet
- Altronix TROVE1DM1 Fichas Tecnicas
- Altronix TROVE1DM1 Installation Instructions
- Altronix TROVE1DM1 Altronix_TROVE1DM1_Power_Integration_Installation_Guide_utilizing_Altronix_Power-Accessories.pdf
- Altronix TROVE1DM1 Guia de Instalacion
- Altronix TROVE1DM1 CAD Drawing
- Altronix TROVE1DM1 Revit File
- Altronix TROVE1DM1 Lifetime Warranty
