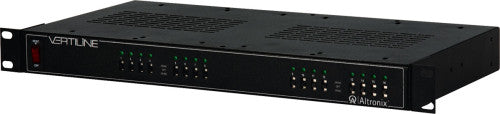

Altronix VERTILINE16 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 10A, 115/220VAC, 1U
Altronix VERTILINE16 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 10A, 115/220VAC, 1U

Altronix VERTILINE16 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 10A, 115/220VAC, 1U

Part Number: 519878
0 Review(s)
Write a Review
Availability:
$563.96
Retail Price:$611.16
Your Savings:$47.20(8%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Vertiline16 CCTV Rack Mount Power Supply provides 16 fuse protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and twenty-four (24) output models with various power ratings.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).



https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • Removable terminal blocks with locking screw flange.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • Selectable 115VAC 60 Hz or 240VAC 50/60 Hz input.
  • 115VAC 60 Hz., 3A.
  • 240VAC 50/60 Hz., 1.5A.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

  • Sixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position.
  • 24VAC or 28VAC @ 10A max. total (0.625A per device, 3A max.).
  • Sixteen (16) external blade fuse protected outputs rated @ 3A.
  • Main fuse rated @ 10A.
  • Surge suppression.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%
  • BTU/Hr. (approx.):
  • 24VAC: 123 BTU/Hr.
  • 28VAC: 143 BTU/Hr.
  • System AC input VA requirement: 115VAC: 345VA, 240VAC: 360VA.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight12.15 Lbs. (5.51 kg).
Shipping Weight13.45 Lbs. (6.1 kg).



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)https://iq.ulprospector.com/en/profile?e=2863898



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix VERTILINE16 Data SheetClick to View
Altronix VERTILINE16 Data SheetClick to View
Altronix VERTILINE16 Fichas TecnicasClick to View
Altronix VERTILINE16 Installation InstructionsClick to View
Altronix VERTILINE16 Altronix_VERTILINE16_CCTV_Power_Supply_Guia_de_Instalacion.pdfClick to View
Altronix VERTILINE16 CAD DrawingClick to View
Altronix VERTILINE16 Lifetime WarrantyClick to View
