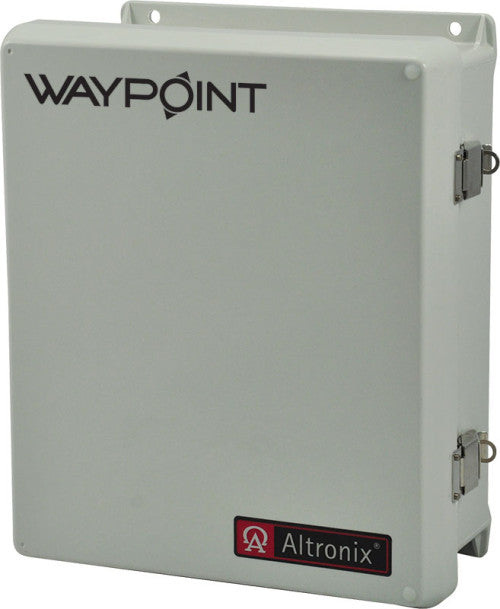

Altronix WAYPOINT10A4U | CCTV Power Supply, Outdoor, 4 Fused Outputs, 24/28VAC @ 4A, 115/220VAC, WP3 Enclosure
Regular price
$396.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix WAYPOINT10A4U | CCTV Power Supply, Outdoor, 4 Fused Output...
Regular price
$396.70
Unit price
Description
Description
Altronix WAYPOINT10A4U | CCTV Power Supply, Outdoor, 4 Fused Outputs, 24/28VAC @ 4A, 115/220VAC, WP3 Enclosure
WayPoint10A4U Outdoor Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
WayPoint10A4U Outdoor Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Altronix - WAYPOINT10A4U - Features and Specifications
- INPUT
- Input: 115VAC, 50/60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.
- Output options:
- a. 24VAC @ 4A max.
- b. 28VAC @ 3.5A max.
- Output fuses rated @ 5A/32V.
Specifications
Specifications
Altronix - WAYPOINT10A4U - Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Altronix - WAYPOINT10A4U - Visual Indicators
- Individual power output LED indicators.
- Illuminated master power switch.
Altronix - WAYPOINT10A4U - Temperature
- Operating Temperature:
- 24VAC @ 4A output: - 40° C to 60°C ( - 40° F to 140° F);
- 28VAC @ 3.5A output: - 40° C to 70°C ( - 40° F to 158° F).
- Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
- Relative Humidity: 85%, +/- 5%
- BTU/Hr. (approx.): 50 BTU/Hr.
- System AC input VA requirement: 115VA.
- Operating Altitude
- Operating Altitude: - 304.8 to 2000m. ( -1000 to 6,561.679 ft.).
Altronix - WAYPOINT10A4U - Specifications
| Amps | 3.1 TO 4.0 |
|---|---|
| Product Type | BOXED POWER SUPPLY |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Sales Category | ELECTRIC BOXED POWER SUPPLY |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - WAYPOINT10A4U - Weights (approximate)
| Product Weight: | 10.32 Lbs. (4.68 kg). |
|---|---|
| Shipping Weight | 11.7 Lbs. (5.3 kg). |
Altronix - WAYPOINT10A4U - Accessories
| PMK1 | Pole Mount Kit, For Outdoor Enclosures |
|---|---|
| WG1 | NEMA Rated Wire Gland Inlets |
