Brand: Altronix | SKU: 1030451

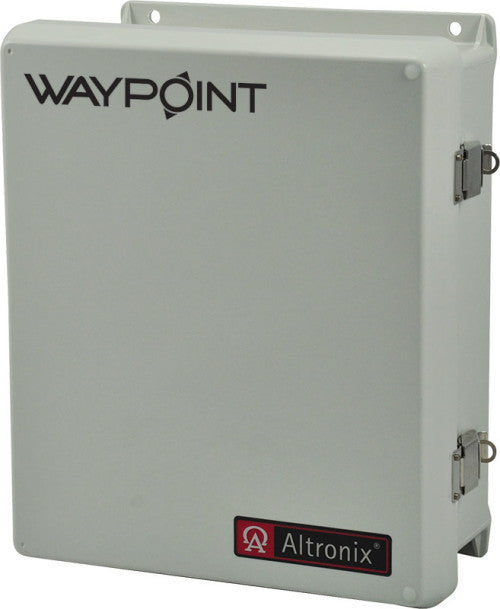

Altronix WAYPOINT10A8DU | CCTV Power Supply, Outdoor, Eight (8) Class 2 Rated PTC protected power-limited outputs, 24VAC @ 4A or 28VAC @ 3.5A, 115/220VAC, WP3 Enclosure

$399.24

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix WAYPOINT10A8DU | CCTV Power Supply, Outdoor, Eight (8) Class 2 Rated PTC protected power-limited outputs, 24VAC @ 4A or 28VAC @ 3.5A, 115/220VAC, WP3 Enclosure

WayPoint10A8DU Outdoor Power Supply provides 24VAC or 28VAC distributed via eight (8) Eight (8) Class 2 Rated PTC protected power-limited outputs for powering CCTV Cameras, heaters, and other video accessories.

Altronix - WAYPOINT10A8DU - Features and Specifications

INPUT
Input: 115VAC, 50/60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.
Output options:
a. 24VAC @ 4A max.
b. 28VAC @ 3.5A max.
Output PTCs rated @ 2.5A.

Specifications

Altronix - WAYPOINT10A8DU - Enclosure

NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).

Altronix - WAYPOINT10A8DU - Visual Indicators

Individual power output LED indicators.
Illuminated master power switch.

Altronix - WAYPOINT10A8DU - Temperature

Operating Temperature:
24VAC @ 4A output: - 40° C to 60°C ( - 40° F to 140° F);
28VAC @ 3.5A output: - 40° C to 70°C ( - 40° F to 158° F).
Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
Relative Humidity: 85%, +/- 5%
BTU/Hr. (approx.): 50 BTU/Hr.
System AC input VA requirement: 115VA.
Operating Altitude
Operating Altitude: - 304.8 to 2000m. ( -1000 to 6,561.679 ft.).

Altronix - WAYPOINT10A8DU - Specifications

Amps	3.1 TO 4.0
Product Type	BOXED POWER SUPPLY
Battery Charging	BATTERY CHARGING CIRCUIT
Sales Category	ELECTRIC BOXED POWER SUPPLY
UL Listing	UL LISTED
UNSPSC Code	43211700
Agency Listing	CE Compliant

Altronix - WAYPOINT10A8DU - Weights (approximate)

Product Weight:	10.9 Lbs. (4.95 kg).
Shipping Weight	12.35 Lbs. (5.6 kg).

Altronix - WAYPOINT10A8DU - Accessories

PMK1	Pole Mount Kit, For Outdoor Enclosures
WG1	NEMA Rated Wire Gland Inlets
