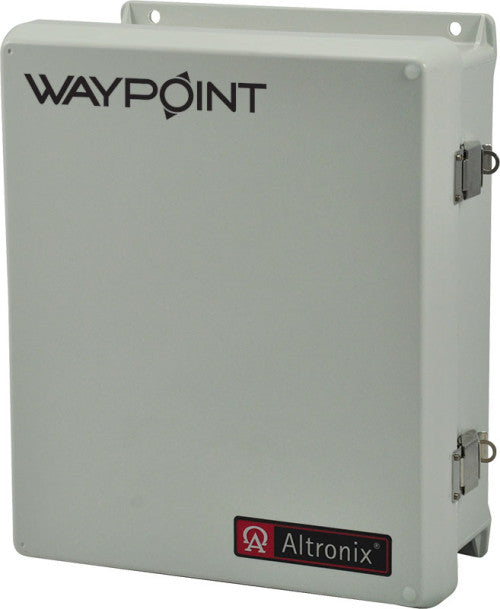

Altronix WAYPOINT10ADU | CCTV Power Supply, Outdoor, Two (2) Class 2 Rated PTC protected power-limited outputs, 24VAC @ 4A and /or 28VAC @ 3.5A, 115/220VAC, WP3 Enclosure

Enclosure

• NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
• Dimensions 11.31"W x 13.31"H x 0"D (287 mm W x 338 mm H x 142 mm D).

Input

• Input: 115VAC, 50/60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.

Output

• Output options:
• a. 24VAC @ 4A max.
• b. 28VAC @ 3.5A max.
• c. Both 24VAC and 28VAC not to exceed 3.5A max.
• Output PTCs rated @ 2.5A.

Visual Indicators

• Individual power output LED indicators.
• Illuminated master power switch.

Temperature

• Operating Temperature:
• 24VAC @ 4A output: - 40° C to 60°C ( - 40° F to 140° F);
• 28VAC @ 3.5A output: - 40° C to 70°C ( - 40° F to 158° F).
• Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.): 50 BTU/Hr.
• System AC input VA requirement: 115VA.

Operating Altitude

• Operating Altitude: - 304.8 to 2000m. ( -1000 to 6,561.679 ft.).

Weights (approximate)

Agency Listings
