Brand: Altronix
|
SKU:
720613

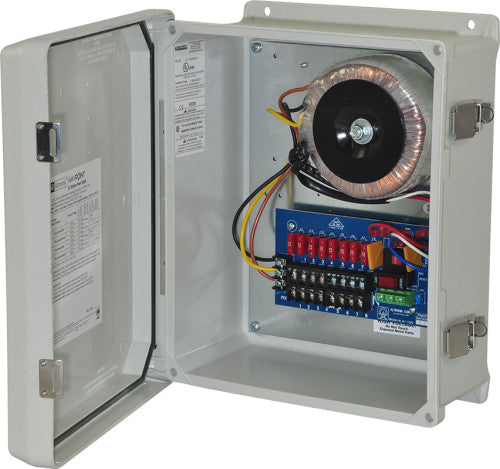

Altronix WAYPOINT30A8U | CCTV Power Supply, Outdoor, 8 Fused Outputs, 24/28VAC @ 12.5A, 115/220VAC, WP3 Enclosure
Regular price
$550.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Altronix WayPoint30A8U Outdoor Power Supply provides 24VAC and/or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Specifications
Specifications
Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Input
- Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
Output
- Output options:
- a. 24VAC @ 12.5A max.
- b. 28VAC @ 10A max.
- Output fuses rated @ 5A/32V.
Visual Indicators
- Individual power output LED indicators.
- Illuminated master power switch.
Temperature
- Operating:
- 24VAC @ 12.5A output: - 40° C to 60° C ( - 40° F to 140° F);
- 28VAC @ 10A output: - 40° C to 70° C ( - 40° F to 158° F).
- Storage: - 40° C to 75° C ( - 40° F to 167° F).
- Relative Humidity: 85% +/- 5%
- BTU/Hr. (approx.): 154 BTU/Hr.
- System AC input VA requirement: 345VA.
Operating Altitude
- - 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
Weights (approximate)
| Product Weight | 15.76 Lbs. (7.15 kg). |
|---|---|
| Shipping Weight | 17.1 Lbs. (7.75 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment (UL60950-22) | https://iq.ulprospector.com/en/profile?e=3010301 |
Documents and Downloads
Documents and Downloads
- Altronix WAYPOINT30A8U Data Sheet
- Altronix WAYPOINT30A8U Data Sheet
- Altronix WAYPOINT30A8U Fichas Tecnicas
- Altronix WAYPOINT30A8U Installation Instructions
- Altronix WAYPOINT30A8U Altronix_WAYPOINT30A8U_CCTV_Power_Supply_Guia_de_Instalacion.pdf
- Altronix WAYPOINT30A8U Revit File
- Altronix WAYPOINT30A8U Lifetime Warranty
