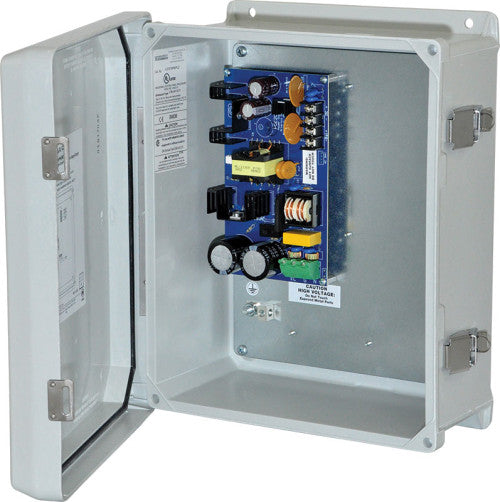

Altronix WAYPOINT562 | High Current Outdoor Power Supply/Charger
Regular price
$499.69
Unit price
Brand: Altronix
|
SKU:
986484
Regular price
$499.69
Unit price
Description
Description
Altronix WAYPOINT562 | High Current Outdoor Power Supply/Charger
Altronix WayPoint562 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Altronix WayPoint562 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Altronix - WAYPOINT562 - Features and Specifications
- INPUT
- 115VAC, 60 Hz, 2.5A or 230VAC, 50Hz, 1.3A.
- OUTPUT
- 56VDC/120W output.
- 2.2A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Battery charging circuit: 48VDC, 0.7A.
- Automatic switch over to stand-by battery when AC fails.
- Battery leads included.
Specifications
Specifications
Altronix - WAYPOINT562 - Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Altronix - WAYPOINT562 - Temperature
- Operating Temperature:
- 60W: -40ºC to 75ºC (-40ºF to 167ºF);
- 75W: -40ºC to 70ºC (-40ºF to 158ºF);
- 100W: -40ºC to 55ºC (-40ºF to 131ºF),
- 120W: -40ºC to 45ºC (-40ºF to 113ºF).
- Storage Temperature:
- -40ºC to 70ºC (-40ºF to 158ºF).
- Relative humidity: 85%, +/- 5%.
- BTU/Hr. (approx.): 72 BTU/Hr.
Altronix - WAYPOINT562 - Specifications
| Environment Type | OUTDOOR |
|---|---|
| Type | POWER SUPPLY |
| UNSPSC Code | 39121031 |
| Agency Listing | CE Compliant |
Altronix - WAYPOINT562 - Weights (approximate)
| Product Weight: | 8.5 Lbs. (3.9 kg). |
|---|---|
| Shipping Weight | 9.7 Lbs. (4.4 kg). |
Altronix - WAYPOINT562 - Accessories
| PMK1 | Pole Mount Kit, For Outdoor Enclosures |
|---|---|
| WG1 | NEMA Rated Wire Gland Inlets |
