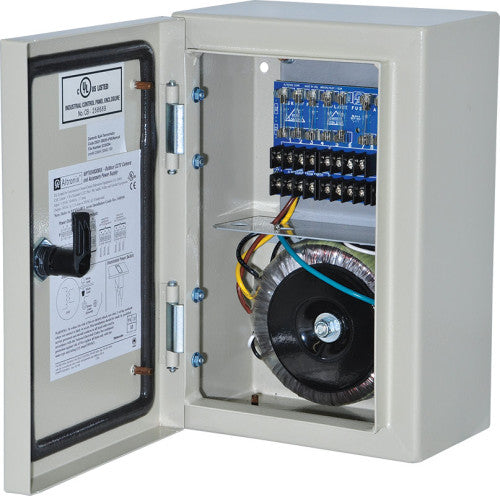

Altronix WPTV248300UL | CCTV Power Supply, Outdoor, 8 Fused Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure
Altronix WPTV248300UL | CCTV Power Supply, Outdoor, 8 Fused Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure

Altronix WPTV248300UL | CCTV Power Supply, Outdoor, 8 Fused Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure

Part Number: ALT-WPTV248300UL
0 Review(s)
Write a Review
Availability:
$184.83
Retail Price:$195.38
Your Savings:$10.55(5%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Altronix WPTV248300UL outdoor CCTV Power Supply provides power via eight (8) fuse protected power-limited outputs for CCTV Cameras, heaters, and other video accessories.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Enclosure

  • NEMA 4/IP 65 Rated enclosure for outdoor use.
  • Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).



https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • Secondary fuse rated @ 5A/250V.
  • Unit maintains camera synchronization.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided. (all models w/primary and/or secondary fuses).
  • NEMA 4 Rated enclosure for outdoor use.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

  • 115VAC, 50/60Hz, 2.7A.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

  • Eight (8) fuse protected outputs.
  • 24VAC @ 12.5A (300VA) supply current. or 28VAC @ 10A (175VA) supply current.
  • Outputs are rated @ 3.5A.
  • Surge suppression.



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 202.4VA.



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Weights (approximate)

Product Weight14.4 Lbs. (6.53 kg).
Shipping Weight16.4 Lbs. (7.44 kg).



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipmenthttps://iq.ulprospector.com/en/profile?e=2863922



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Altronix WPTV248300UL Data SheetClick to View
Altronix WPTV248300UL Data SheetClick to View
Altronix WPTV248300UL Fichas TecnicasClick to View
Altronix WPTV248300UL Installation InstructionsClick to View
Altronix WPTV248300UL Altronix_WPTV248300UL_CCTV_Power_Supply_Guia_de_Instalacion.pdfClick to View
Altronix WPTV248300UL CAD DrawingClick to View
Altronix WPTV248300UL Revit FileClick to View
Altronix WPTV248300UL Lifetime WarrantyClick to View
