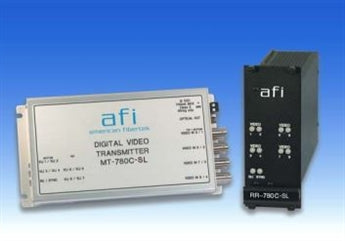

American Fibertek MR780CSL 8-Channel 8-Bit Digital Rx Single Mode
Description
Description
The American Fibertek MR-780C-SL is a module receiver component of the 780C-SL series eight channel digital video system. The 780C-SL series transmits eight channels of high-quality digitized video on one singlemode optical fiber. Designed to be completely transparent to all camera and monitor manufacturers, this system requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of system status. The "Afinety" intelligent remote monitoring system is available on this product, please consult the factory.
Features:
- Compatible with NTSC, (RS - 170A & RS -343A), PAL and SECAM
- Diagnostics: Video, DC Power, Digital Frame Sync, OLI
- Available with Enhanced "Afinety" Intelligent Monitoring System
- Digital Video Transmission
- Serial Digital Transmission
Specifications:
- I/0 Level: 1 Vp-p (-+3 dB)
- I/0 Impedance: 75 Ohms
- Bandwidth: 7 MHz
- Differential Gain: 2 %
- Differential Phase: 0.7 degrees
- SNR (Unified Weighted): 55 dB
- Connector: BNC
- Wavelength: 1310 nm
- Loss Budget (9/125u): 15 dB
- Connector: FC/PC
- Temperature (Operating): -40 degreesC to +75 degreesC, non-condensing
