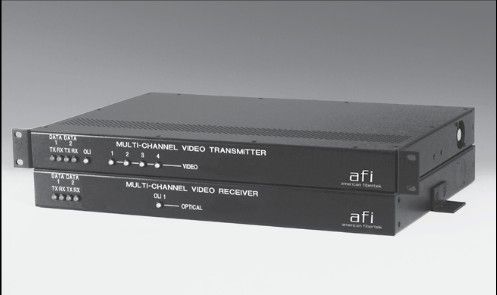

American Fibertek MRX8485C | 4-Ch Video with MPD Data 1RU Receiver

Four Video & MPD Data 1RU Video Rx 1310/1550nm MM 1 Fiber.

The American Fibertek 8485C Series transmits four channels of high-quality,FM video with bi-directional PTZ or keyboard data on one multimode optical fiber. The 8485C Series is switch selectable to one channel of RS485 (2 or 4 wire) or Manchester/Bosch data, or a dual channel consisting of RS422 and RS232 data. The 8485C Series also incorporates switch selectable data biasing and data termination features. 8485C series is designed to be completely transparent to all camera and monitor manufacturers. The system requires no field adjustments at installation or additional maintenance thereafter.

American Fibertek - MRX8485C - Features

• Compatible with NTSC; RS-170A & RS-343A and PAL
• Diagnostics: Video, Data, Power and Optical Presence
• Full Color Transmission
• Real Time Video Transmission
• Switch Selectable Termination and Fail Safe Bias
• Wall or Rack Mount
• PFM Video Transmission
• For distances up to 25 km (15+ miles), consult AFI
• Real-time video transmission
• Diagnostic indicators for video, power and optical presence
• Compatible with NTSC, RS170A, RS343A, AL, CCIR standards
• Compatible with Baxall, Betah

American Fibertek - MRX8485C - Specifications

Audio Support	No
Capacity	4 Channel
PTZ Control	Yes
Type	Receiver
Form Factor	Box
UNSPSC Code	46171600

American Fibertek - MRX8485C - Documents and Downloads

American Fibertek MRX8485C Data Sheet	Click to View
American Fibertek MRX8485C Manual	Click to View
