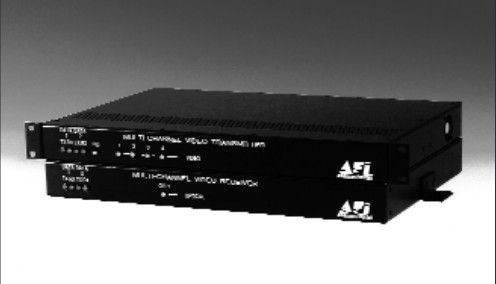

American Fibertek MRX8489C | 4-Ch Video & MPD Data Receiver w/C...
Description
Description
Four Video & MPD Data & Contact 1RU Video Rx 1310/1550nm MM 1 Fiber.
The American Fibertek 8489 Series transmits four channels of high-quality video with switch selectable bi-directional RS485 data or bi-directional RS422 and Contact Closure on a multimode optical fiber. Included in the circuit design is a switch selectable 2 or 4 wire configuration and the ability to select data line termination. Designed to be completely transparent to all camera and monitor manufacturers, this system requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of system status. In addition, two sub-carriers can be added to each video channel using the 500 Series modulators and demodulators. Equipment may be mounted as stand alone modules or rack units by the position of the mounting brackets.
American Fibertek - MRX8489C - Features
- Compatible with NTSC; RS-170A & RS-343A and PAL
- Diagnostics: Video, Data, Power and Optical Presence
- Switch Selectable 2 Wire or 4 Wire RS485
- Switch Selectable RS485 or (1) RS422 and (1) Contact Closure
- Full Color Transmission
- Real Time Video Transmission
- Compatible with 500 Series Audio/Data Modulators & Demodulators
- PFM Transmission
- Wall or Rack Mount
Specifications
Specifications
American Fibertek - MRX8489C - Specifications
| UNSPSC Code | 46171610 |
|---|
