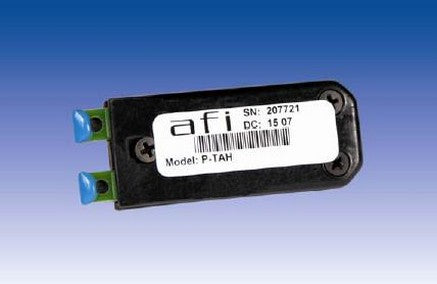

American Fibertek P-TAH Temperature/Airflow/Humidity Probe

The American Fibertek sensor probes are an accessory to our line of Network Appliance products and V’nes network switches. Products with afi USB ports can accept sensor probes and monitor local conditions generating warnings and alarms when values exceed user programmed levels. Warning and Alarm messages can be sent via TCP messaging, email and/or to Pilot VMS software servers. Local or remote relays may be triggered for programmed time durations. P-TA and P-TAH probes are small and compact for easy placement exactly where conditions are needed to be monitored. Remote locations can be actively monitored without the requirement of physical presence.

Features

Compact Size

USB Communication & Cabling

LED Power/Com Indicator

Wide Sensing Range

Warning and Alarm Set Points

Specs

Manufacturer American Fibertek Inc.

Condition New

Sensing Range

Range Temp: 0°C to 70°C (32°F to 158°F)

Airflow Relative Reading: Detects 15% over full temperature range

Humidity (P-TAH only): 0% to 100% Relative Humidity

Operating Temperature: 40°C to 85°C (-40°F to 185°F)

Operating Humidity: 0% to 95% RH Non-Condensing

Dimensions 2.5” (D) x .875”(H) x 0.4”(W), 63.5mm (D) x 22.2mm x 10.2 (W)

Connector Mini-USB type B 5pin

Data Transfer Rate 12M bit/sec (full speed USB)

Certifications:

FCC:

CFR Title 47, Part 15 Class A

CE: EN55022 Emissions

EN55024 Immunity

UL/CE: IEC 61010
