Atlas Sound C-ZSV-US-B | Atmosphere Zone, Source, and Volume Wall C...
Description
Description

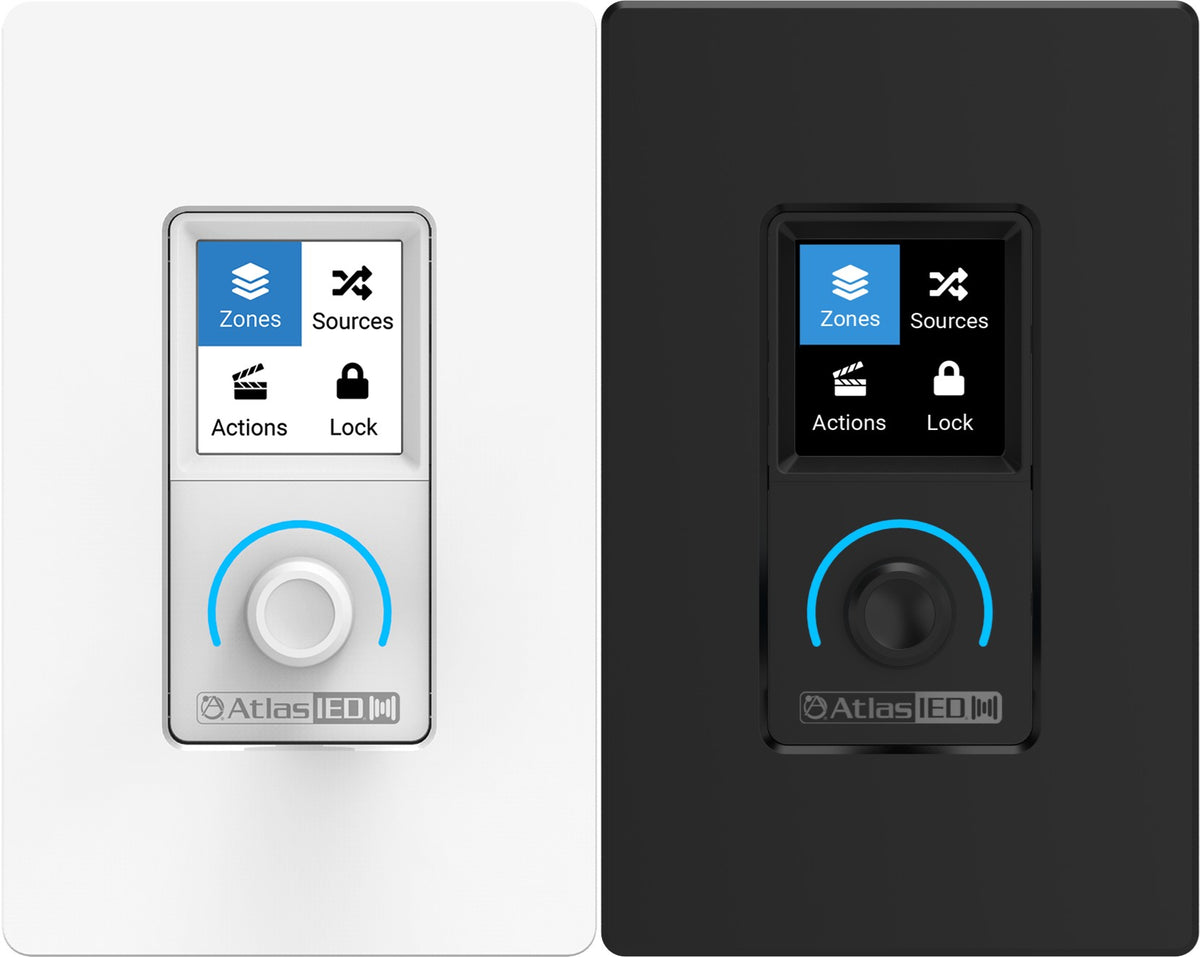

The Atmosphere C-ZSV controller is an intuitive wall controller for total control of an Atmosphere system. The C-ZSV enables control of multiple zones and groups for source selection and volume adjustments, as well as more advanced capabilities such as scenes recall, messages recall, routine recall, GPO control, and bell schedules.
Zone control and other capabilities are completely customizable through a simple opt-in structure within the AZM user interface.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port.
Atlas Sound - C-ZSV-US-B - Features
- Color LCD screen with light/dark themes
- Push button encoder for menu navigation, selection, and volume control
- Customizable RGB LED ring for mute, level, and fader control
- Access multiple zones for control of input source and volume
- Tone Control Bass/Treble adjustment
- Input Source Control
- Software configurable pin code access lock
- Control of groups and room combine
- Scene recall, message recall, and routine recall
- Sub mix control
- Automatic creation of Virtual Wall Controller (VWC)
- User selectable screen saver, including QR code for simple, touchless Virtual Wall Controller access
- Locate LED function for easy identification
Specifications
Specifications
Atlas Sound - C-ZSV-US-B - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- AV Control and Monitoring Systems
- Media Controllers
- DSP / Signal Processors
- Atmosphere™ Platform
- Accessories
Atlas Sound - C-ZSV-US-B - Related Products
- AZM8 - Atmosphere™ 8-Zone Audio Processor
- AZM8 - Atmosphere™ 4-Zone Audio Processor
- AZA804 - 800-Watt Networkable 4-Channel Power Amplifier
- AZA404 - 400-Watt Networkable 4-Channel Power Amplifier
Atlas Sound - C-ZSV-US-B - Specifications
| UNSPSC Code | 46171600 |
|---|
