Belden 1266A 0101000 | Audio Cable, 22 AWG, Stranded, 2, Tinned Cop...
Regular price
$549.05
Unit price
Brand: Belden
|
SKU:
B1266A
Regular price
$549.05
Unit price
Description
Description

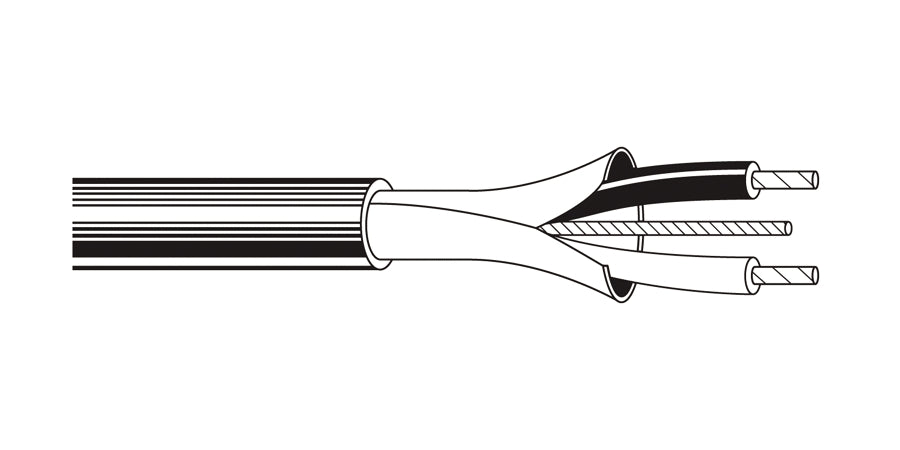

Belden 1266A 0101000 | Audio Cable, 22 AWG, Stranded, 2, Tinned Copper, 1000 ft. L
Audio Cable; 22 AWG; Stranded; 2 Conductor; Tinned Copper; 1000 ft. Length; 7x30 Str; Black PVC Jacket; Polypropylene Insulation; CM; 300 V; Black and Red; Tape; Bi-Laminate Shield; -20 to +60 C; 0.02 in. Thickness; 25 lb.
Specifications
Specifications
Belden - 1266A 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 1266A 0101000 - Applications
- Low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Belden - 1266A 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1266A 0101000 |
| Item Description | Audio Cable, 22 AWG, Stranded, 2, Tinned Copper, 1000 ft. L |
| Amperage | 2.3 A |
| Approval Listings | Nec/Ul, Cul-Listed, Eca Approved |
| Bend Radius | 1.5 In. |
| Capacitance | 30 Pf/Ft. |
| Color Code | Black, Red |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Impedance | 55 Ohm |
| Inductance | 0.18 ?h/Ft. |
| Insulation Material | Pp-Polypropylene |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cm |
| Length | 1000 Ft. |
| Material | Tinned Or Coated Copper |
| Nec Rating | Ul Listed Art 800 |
| Nominal O.D. | 0.14 In. |
| Package Type | Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Audio Cable |
| Pulling Force | 25 Lbs. |
| Resistance | 15 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100% Bi-Laminate (Aluminum/Poly) Tape, Tinned Copper Drainwire |
| Shield Type | Beldfoil |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -20 To 60 Deg C |
| Thickness | 0.02 In. |
| Voltage | 300 V |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
