Belden 1508A B591000 | Audio Cable, 24 AWG, Stranded Conductor, 1-P...
Regular price
$852.50
Unit price
Brand: Belden
|
SKU:
B1508A
Regular price
$852.50
Unit price
Description
Description

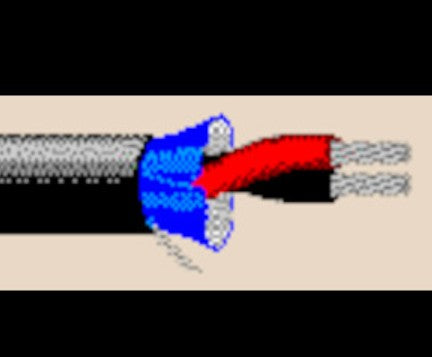

Belden 1508A B591000 | Audio Cable, 24 AWG, Stranded Conductor, 1-Pair, 1000 ft. L
Audio Cable; 24 AWG Conductor; Stranded Conductor; 1-Pair Conductor; Tinned-Coated Copper Conductor; 1000 ft. Length; 0.024 in. Thickness; 7x32 Str; Matte Black Jacket; PVC Jacket; Polyolefin Insulation; CM; 300 V; Tape Shield
Specifications
Specifications
Belden - 1508A B591000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 1508A B591000 - Applications
- For use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Belden - 1508A B591000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1508A B591000 |
| Item Description | Audio Cable, 24 AWG, Stranded Conductor, 1-Pair, 1000 ft. L |
| Amperage | 3.3 A |
| Approval Listings | Nec/Ul-Cm, Cec/Cul-Cm, Eca Approved |
| Bend Radius | 1.31 In. |
| Capacitance | 31 Pf/Ft. |
| Color Code | Black, Red |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Impedance | 50 Ohm |
| Inductance | 0.18 ?h/Ft. |
| Insulation Material | Po-Polyolefin |
| Jacket Color | Matte Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cm |
| Length | 1000 Ft. |
| Material | Tinned Or Coated Copper |
| Nec Rating | Not Listed By Ul Under Nec |
| Nominal O.D. | 0.13 In. |
| Package Type | Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Audio Cable |
| Pulling Force | 16.5 Lbs. |
| Resistance | 28.3 Ohm/1000 Ft. |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100% Bi-Laminate (Aluminum/Poly) Tape, Tinned Copper Drainwire |
| Shield Type | Beldfoil |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -20° To +60°C |
| Thickness | 0.024 In. |
| Voltage | 300 Vrms |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
