Belden 1695A 8771000 | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copp...
Regular price
$4,500.56
Unit price
Brand: Belden
|
SKU:
B1695A
Regular price
$4,500.56
Unit price
Description
Description

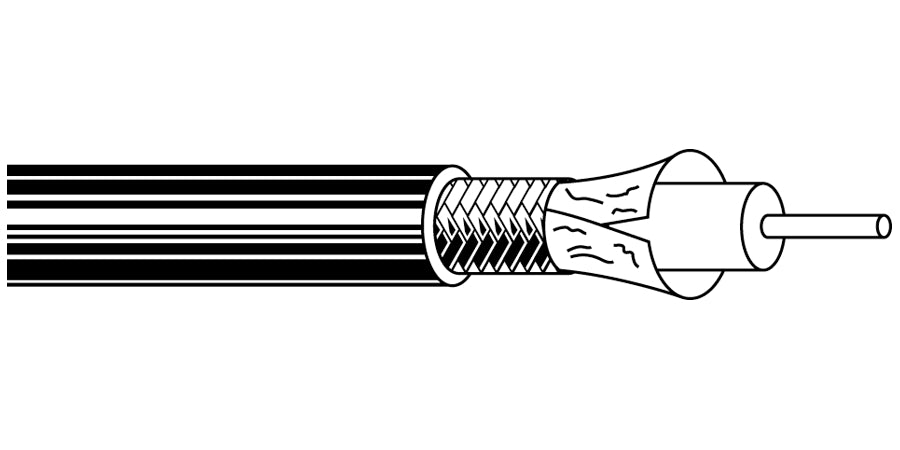

Belden 1695A 8771000 | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copper, 1000 ft. L
Coaxial Cable; RG6; 18 AWG; Solid; Bare Copper; 1000 ft. Length; Natural PVC Jacket; 4500 to 6000MHz; PE Insulation; CMP; 300 V; Braid; Tri-Laminate, Tinned Copper Shield; -30 to +75 C; 0.229 in. Nominal Outside Diameter
Specifications
Specifications
Belden - 1695A 8771000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 1695A 8771000 - Applications
- Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
Belden - 1695A 8771000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1695A 8771000 |
| Item Description | Coaxial Cable, RG6, 18 AWG, Solid, Bare Copper, 1000 ft. L |
| Approx. Wt. Lb./1,000 Ft. | 44 |
| Bend Radius | 2.3 In. |
| Braid % | 95% Braid Coverage |
| Braid Matl | Tinned Copper |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Cable Type | Rg-6 / U Coax Cable |
| Cable/Wire Type | Rg6 |
| Capacitance | 16.2 Pf/Ft. |
| Coax Construction | Coaxial |
| Coax Type | Rg 6 |
| Conductor Awg | 18 Gauge Awg |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.04 Inches |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding/Dia. Awg &Amp Type | 1/0.040/18/Bc |
| Conductor Type | Solid |
| Dielectric Material | Ffep-Foamed (Cellular) |
| Dielectric Type/Jkt. | Ffep/Frpvc |
| Flooded | No Not Flooded Over Braid |
| Frequency Rating | 4500 To 6000Mhz |
| Imped. Ohms | 75 |
| Impedance | 75 Ohm |
| Insulation Material (O.D. In.) | Ffep/0.170 |
| Insulation | Foam Fep |
| Jacket Color | Natural |
| Jacket Material Color (O.D. In.) | Fr-Pvc/Wht/0.234 |
| Jacket Material | Ls Pvc |
| Jacket Rating Application | General Purpose |
| Jacket Rating Code | Cmp Plenum |
| Jacket Rating | Cmp |
| Jacketing Material | Frpvc-Flame Retardant Polyvinyl Chloride |
| Length | 1000 Ft. |
| Material | Bare Copper |
| Nec Rating | Cmp |
| Nom. O.D. (In.) | 0.234 |
| Nominal Impedance | 75 Ohm |
| Nominal Od | 0.229 In (5.817 Mm) |
| Notes/Special Features | + Colors Sdi/Hdtv |
| Outdoor | No Not Outdoor Grade Material |
| Plenum | Plenum |
| Product Type | Coaxial Cable |
| Pulling Force | 69 Lb. |
| Rating | Cmp |
| Resistance | 6.4 Ohm./1000 Ft. Dc |
| Rg Type | Rg6 |
| Rohs Compliant | Yes |
| Screen/Shield Type | Both, Braid Over Foil |
| Shield Coverage | Foil + 95% Tc Braid |
| Shield Material | Al Polyester Tape 100-Pct, Tinned Cu Braid 95-Pct |
| Shield Type | Dual Foil And Braid Shield |
| Shield | Foil + 95% Tc Braid |
| Spec/Stnd Nec | Ul Listed Art 800 Plenum |
| Temperature Rating - Max | 75 Deg C |
| Temperature Rating | -30 To +75 C |
| Voltage | 300 V |
| Wire Size | 18 Awg Solid Bc |
| Environmental Suitability | Indoor - Plenum, Indoor |
