Belden 1818P 0101000 | Audio Snake Cable, 22 AWG, Stranded, 12, Tin...
Regular price
$20,795.79
Unit price
Brand: Belden
|
SKU:
B1818P
Regular price
$20,795.79
Unit price
Description
Description

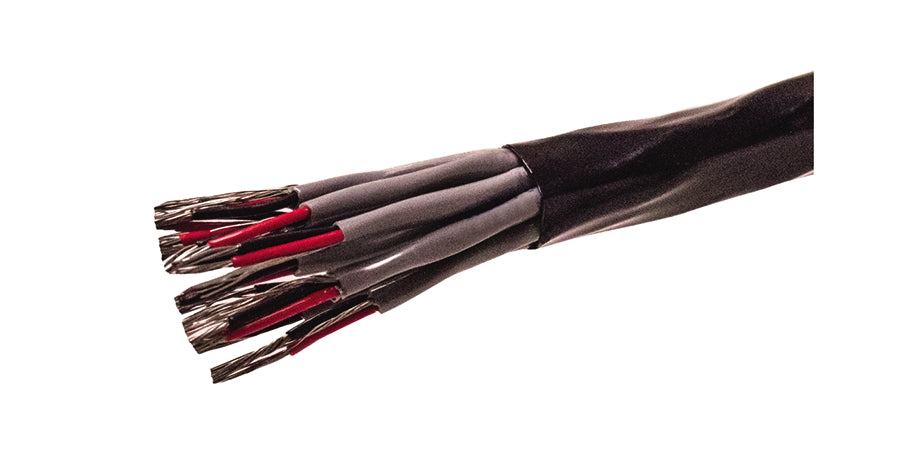

Belden 1818P 0101000 | Audio Snake Cable, 22 AWG, Stranded, 12, Tinned Copper, CMP
Audio Snake Cable; 22 AWG; Stranded; 12 Conductor; Tinned Copper; 1000 ft. Length; 7x30 Str; Black Polyvinylidene Fluoride with Ripcord Jacket; FEP Insulation; CMP; 300 V; Black, Red; Tape; Bi-Laminate Shield; -40 to +150 C
Specifications
Specifications
Belden - 1818P 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 1818P 0101000 - Applications
- Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio
Belden - 1818P 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 1818P 0101000 |
| Item Description | Audio Snake Cable, 22 AWG, Stranded, 12, Tinned Copper, CMP |
| Amperage | 1.45 A |
| Approval Listings | Ul-910, Ft6, Ce-Marked, Nec Article 800, Nfpa 262, Weee Compliant |
| Bend Radius | 5.2 In. |
| Capacitance | 31 Pf/Ft. |
| Color | Black, Red |
| Cond. Type | Stranded Conductor |
| Conductor Count | 12 Pair |
| Conductor Gauge (Awg) | 22 Awg |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7X30 Str |
| Conductor Strands | 7X30 Str |
| Conductor Type | Stranded |
| Construction | Braid/Mylar/Braid Overall Dbl Braid |
| Impedance | 50 Ohm |
| Insulation Material | Po-Polyolefin |
| Insulation | Fep |
| Jacket Color | Black |
| Jacket Material | Pvdf |
| Jacket Rating | Cmp Plenum |
| Jacketing Material | Pvdf-Polyvinylidene Fluoride (Kynar) |
| Length | 1000 Ft. |
| Material | Tinned Copper |
| Nec Rating | Ul Listed Art 800 Plenum |
| Nominal Od | 0.52 In. |
| Package | Crate Reel |
| Plenum | Plenum |
| Product Type | Audio Snake Cable |
| Pulling Force | 365 Lb. |
| Resistance | 14.8 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100% Aluminum/Polyester Tape |
| Shield Type | Individual Foil |
| Shielded | Stp |
| Temperature Rating | -40 To +150 C |
| Thickness | 0.015 In. |
| Voltage | 300 Vac |
| Environmental Suitability | Indoor - Plenum, Indoor |
