Brand: Belden
|
SKU:
B4694R-1000

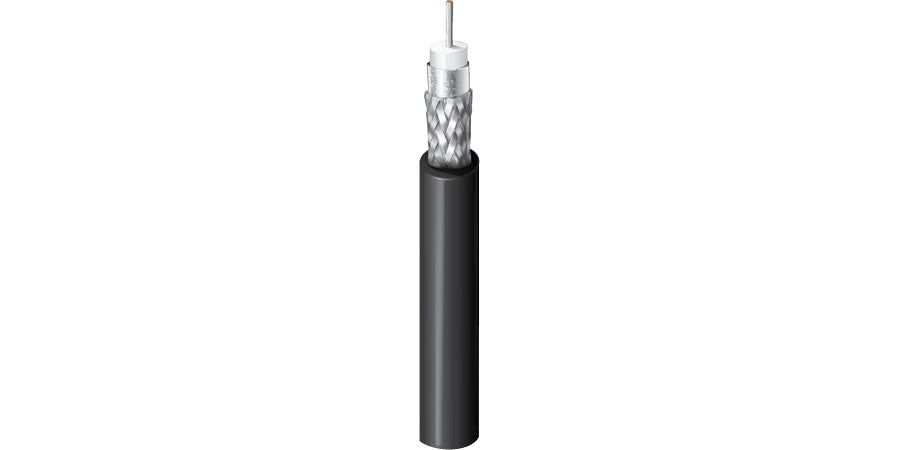

Belden 4694R 0101000 | Coaxial Cable, RG6, 18 AWG, Solid, Silvered Copper, Black
Regular price
$1,922.04
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 4694R 0101000 | Coaxial Cable, RG6, 18 AWG, Solid, Silvered ...
Regular price
$1,922.04
Unit price
Brand: Belden
|
SKU:
B4694R-1000
Regular price
$1,922.04
Unit price
Description
Description
Belden 4694R 0101000 | Coaxial Cable, RG6, 18 AWG, Solid, Silvered Copper, Black
Coaxial Cable; RG6; 18 AWG; Solid; Silvered Copper; 1000 ft. Length; Black PVC Jacket; 4500 to 12000MHz; Foam PE Insulation; CMR; 300 V; Tape, Braid; Tri-Laminate, Tinned Copper Shield; -20 to +75 C; 69 lb.; 15.9 pF/ft.
Specifications
Specifications
Belden - 4694R 0101000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 4694R 0101000 - Applications
- Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p
Belden - 4694R 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 4694R 0101000 |
| Item Description | Coaxial Cable, RG6, 18 AWG, Solid, Silvered Copper, Black |
| Attenuation | 15 Db |
| Bend Radius | 2-3/4 In. |
| Braid % | 95% Braid Coverage |
| Braid Matl | Tinned Copper |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Cable Type | Rg-6 Coax Cable |
| Cable/Wire Type | Rg6 |
| Capacitance | 15.9 Pf/Ft. |
| Coax Construction | Coaxial |
| Coax Type | Rg6 |
| Conductor Awg | 18 Gauge Awg |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.04 Inches |
| Conductor Material | Solid Silver-Plated Copper |
| Conductor Size | 18 Awg |
| Conductor Type | Solid |
| Dielectric Material | Foamed Hdpe-Hi-Density Polyethylene |
| Fire Rating | Riser |
| Flooded | No Not Flooded Over Braid |
| Frequency Rating | 4500 To 12000Mhz |
| Impedance | 75 Ohm |
| Indoor Or Outdoor Use | Indoor |
| Inductance | 0.106 µh/Ft. |
| Insulation Material | Fpe - Foamed Polyethylene |
| Insulation | Gas Injected Fhdpe |
| Jacket Color | Black |
| Jacket Material | Pvc |
| Jacket Rating Application | Non-Plenum Rated |
| Jacket Rating Code | Cmr, Cmg |
| Jacket Rating | Cmr |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Ultra-High Definition Digital Video, 4K Single-Link 12 Gb/S Uhdtv, 4K D-Cinema, 8K Quad-Link Uhdtv, Hd-Sdi 1080P |
| Material | Silver Coated Copper |
| Nominal Impedance | 75 O |
| Nominal Od | 6.96Mm |
| Operating Frequency | 1 To 12000 Mhz |
| Outdoor | No Not Outdoor Grade Material |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | 4K Uhd Coaxial Cable |
| Pulling Force | 69 Lb. |
| Resistance | 6.4 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Both, Braid Over Foil |
| Shield Material | 100% Aluminum Polyester, 95% Tinned Copper Braid |
| Shield Type | Foil And Braid |
| Spec/Stnd Nec | Ul Listed Art 800 Riser |
| Temperature Rating - Max | 75°C |
| Temperature Rating | -20 To +75 C |
| Voltage Rating | 300 V |
| Voltage | 300 V |
| Environmental Suitability | Indoor - Riser, Indoor, Aerial - Black only, When supported by messenger wire |
