Brand: Belden
|
SKU:
B5100FE-1000
Belden 5100FE 0081000 | Audio Cable, 14 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$921.92
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5100FE 0081000 | Audio Cable, 14 AWG, Stranded, 2, Bare Copp...
Regular price
$921.92
Unit price
Brand: Belden
|
SKU:
B5100FE-1000
Regular price
$921.92
Unit price
Description
Description

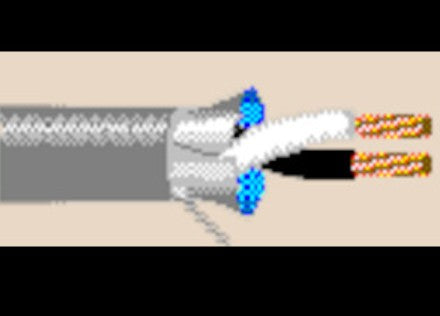

Belden 5100FE 0081000 | Audio Cable, 14 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Audio Cable; 14 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 19x26 Str; Gray PVC with Ripcord Jacket; Polypropylene Insulation; Riser, CL3R-FPLR; 300 V; Black, White; Tape; Bi-Laminate Shield; -20 to +75 C; 8 A
Specifications
Specifications
Belden - 5100FE 0081000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 5100FE 0081000 - Applications
- Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems
Belden - 5100FE 0081000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 5100FE 0081000 |
| Item Description | Audio Cable, 14 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 8 A |
| Approval Listings | Ul-1666, Ce-Marked, Iec-60332-1-2, Nec/Ul-Article 725, 760, Eca Approved |
| Approx. Wt. Lbs./1,000 Ft. | 38 |
| Bend Radius | 2.2 In. |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 54 Pf/Ft. |
| Conductor Count | 2 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 14 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Inductance | 0.15 ?h/Ft. |
| Insulation Color | Black, White |
| Insulation Material | Pp-Polypropylene |
| Insulation Thickness | 0.011 In. |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cl3R, Fplr |
| Length | 1000 Ft. |
| Nec Rating | Ul Listed Art 725 Cl3 Riser |
| Nom. O.D. (In.) | 0.222 |
| Nominal O.D. | 0.222 In. |
| Number Of Conductors | 2 |
| Package Type | Crate Reel Put-Up |
| Plenum | Riser |
| Product Type | Security And Sound Commercial Audio Cable |
| Pulling Force | 125 Lbs. |
| Resistance | 2.54 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100% Bi-Laminate (Aluminum + Poly) |
| Shield Type | Foil Shielded - Aluminum / Mylar |
| Shielding | Shielded |
| Temperature Rating | -20 To +75 C |
| Thickness | 0.017 In. |
| Type | Security And Commercial Audio Cable |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 38 |
| Environmental Suitability | Indoor - Riser, Indoor |
