Brand: Belden
|
SKU:
B5301FE-U1000

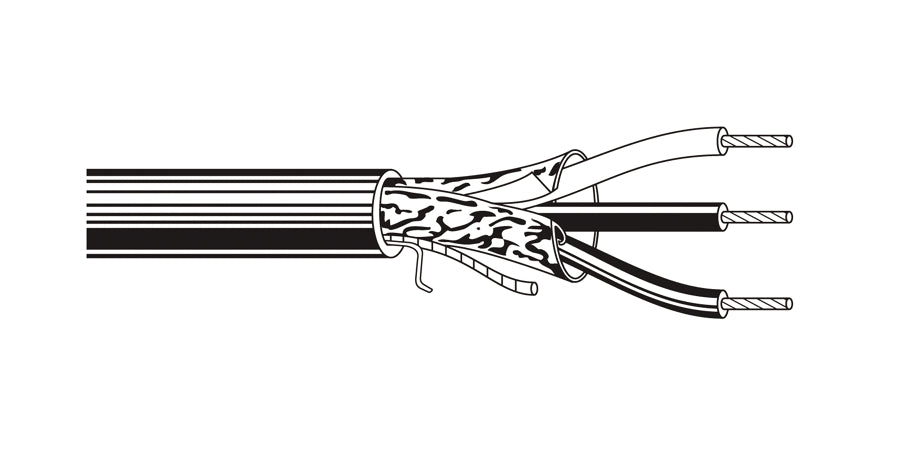

Belden 5301FE 008U1000 | Audio Cable, 18 AWG, Stranded, 3, Bare Copper, 1000 ft. L
Regular price
$620.58
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5301FE 008U1000 | Audio Cable, 18 AWG, Stranded, 3, Bare Cop...
Regular price
$620.58
Unit price
Brand: Belden
|
SKU:
B5301FE-U1000
Regular price
$620.58
Unit price
Description
Description
Belden 5301FE 008U1000 | Audio Cable, 18 AWG, Stranded, 3, Bare Copper, 1000 ft. L
Audio Cable; 18 AWG; Stranded; 3 Conductor; Bare Copper; 1000 ft. Length; 7x26 Str; Gray PVC with Ripcord Jacket; Polypropylene Insulation; Riser, CMR; 300 V; Black, Red, White; Tape; Bi-Laminate Shield; -20 to +75 C; 81 lb.
Specifications
Specifications
Belden - 5301FE 008U1000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 5301FE 008U1000 - Applications
- Intercom/PA Systems, Sound/Audio Systems
Belden - 5301FE 008U1000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 5301FE 008U1000 |
| Item Description | Audio Cable, 18 AWG, Stranded, 3, Bare Copper, 1000 ft. L |
| Amperage | 5 A |
| Approval Listings | Ul 1666, Csa Ft4 |
| Bend Radius | 1.7 In. |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 36 Pf/Ft. |
| Color Code | Gray (Slate) |
| Color | Black, Red, White |
| Cond. Type | Stranded Conductor |
| Conductor Count | 3 Conductor |
| Conductor Gauge (Awg) | 18 Awg |
| Conductor Material | Stranded Bare Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 7 X 26 |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Insulation Material | Pp-Polypropylene |
| Insulation | Polypropylene |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Jacket Rating | Cmr, Cmg |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Length | 1000 Ft. |
| Material | Bare Copper |
| Nec Rating | Ul Listed Art 800 Riser |
| Nominal Od | 0.171 In. (4.34 Mm) |
| Package | Reel |
| Plenum | Riser |
| Product Type | Security And Sound Commercial Audio Cable |
| Pulling Force | 81 Lb. |
| Resistance | 6.5 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100 Percent Aluminum Polyester |
| Shield Type | Beldfoil Shield |
| Shielded | Stp |
| Temperature Rating | -20 To 75 Degree C (-4 To 167 Degree F) |
| Thickness | 0.017 In. |
| Type | Audio Cable |
| Voltage | 300 Vac |
| Environmental Suitability | Indoor - Riser, Indoor |
