Brand: Belden
|
SKU:
B6000UE-1000

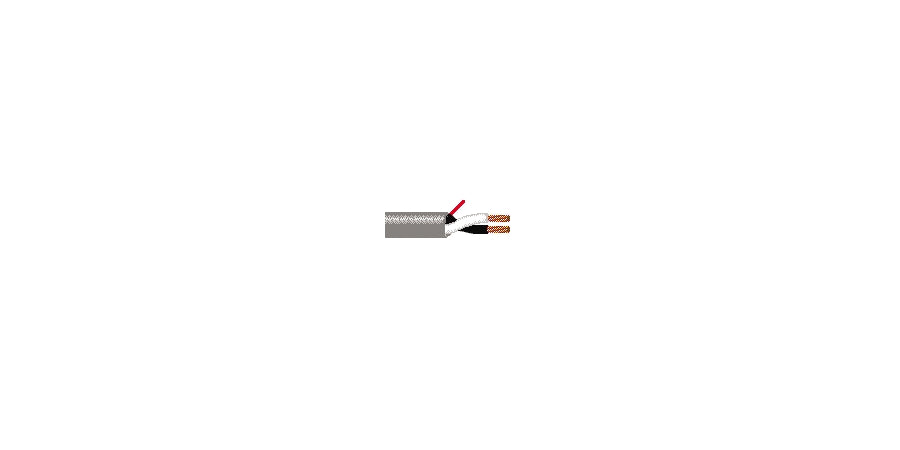

Belden 6000UE 8771000 | Audio Cable, 12 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$1,438.36
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6000UE 8771000 | Audio Cable, 12 AWG, Stranded, 2, Bare Copp...
Regular price
$1,438.36
Unit price
Brand: Belden
|
SKU:
B6000UE-1000
Regular price
$1,438.36
Unit price
Description
Description
Belden 6000UE 8771000 | Audio Cable, 12 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Audio Cable; 12 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 19x25 Str; Natural Flamarrest PVC with Ripcord Jacket; Flamarrest PVC Insulation; Plenum, CL2P; 150 V; Black, White; Unshielded; 0 to 75 C; 152 lb.
Specifications
Specifications
Belden - 6000UE 8771000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 6000UE 8771000 - Applications
- Intercom/PA Systems, Sound/Audio Systems
Belden - 6000UE 8771000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 6000UE 8771000 |
| Item Description | Audio Cable, 12 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 12 A |
| Bend Radius | 2.5 In. |
| Capacitance | 36 Pf/Ft. |
| Color Code | Black, White |
| Conductor Count | 2 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 12 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Inductance | 0.14 ?h/Ft. |
| Insulation Material | Ls Pvc |
| Jacket Color | Natural |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Jacket Rating | Cmp |
| Length | 1000 Ft. |
| Nec Rating | Not Listed By Ul Under Nec |
| Nominal O.D. | 0.257 In. |
| Package Type | Reel |
| Plenum | Riser |
| Product Type | Security And Sound Commercial Audio Cable |
| Pulling Force | 152 Lbs. |
| Resistance | 1.6 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | No |
| Shield Type | Unshielded |
| Shielded | Utp |
| Temperature Rating | 75 Deg C |
| Thickness | 0.015 In. |
| Type | Sound And Audio Cable |
| Voltage | 150 Vac |
| Environmental Suitability | Indoor - Plenum, Indoor |
