Brand: Belden
|
SKU:
B6400FE-U1000

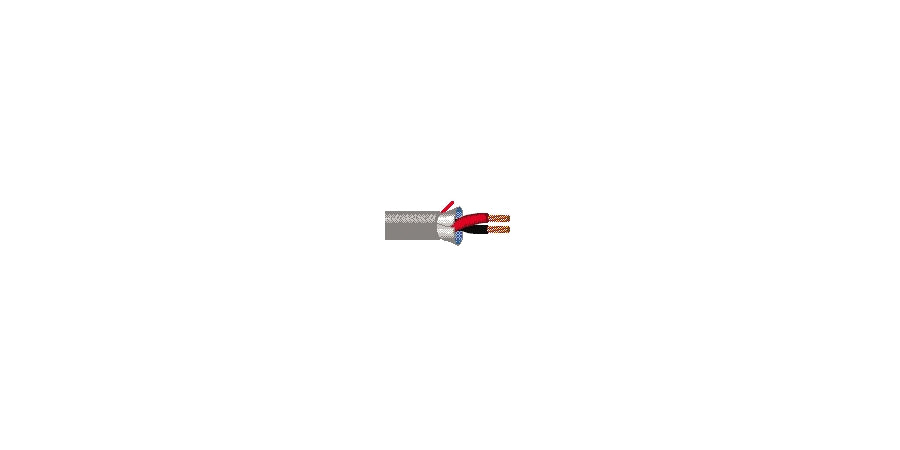

Belden 6400FE 877U1000 | Audio Cable, 20 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$435.38
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6400FE 877U1000 | Audio Cable, 20 AWG, Stranded, 2, Bare Cop...
Regular price
$435.38
Unit price
Brand: Belden
|
SKU:
B6400FE-U1000
Regular price
$435.38
Unit price
Description
Description
Belden 6400FE 877U1000 | Audio Cable, 20 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Audio Cable; 20 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 7x28 Str; Natural Flamarrest PVC with Ripcord Jacket; Flamarrest PVC Insulation; Plenum, CMP; 300 V; Black, Red; Tape; Bi-Laminate Shield; 0 to 75 C
Specifications
Specifications
Belden - 6400FE 877U1000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 6400FE 877U1000 - Applications
- Intercom/PA Systems and Sound/Audio Systems.
Belden - 6400FE 877U1000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 6400FE 877U1000 |
| Item Description | Audio Cable, 20 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 3.75 A |
| Approval Listings | Ul-910, Ce-Marked, Nec Article 800, Nec/Ul-Cmp, Cec/Cul-Cmp, Nfpa 262 |
| Bend Radius | 1.4 In. |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Capacitance | 56 Pf/Ft. |
| Color Code | Natural |
| Color | Insulation - Black, Red |
| Cond. Type | Stranded Conductor |
| Conductor Count | 2 Conductor |
| Conductor Gauge (Awg) | 20 Awg |
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 7X28 Str |
| Conductor Strands | 7X28 Str |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Insulation Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Insulation | Pvc |
| Jacket Color | Natural |
| Jacket Material | Pvc |
| Jacket Rating | Cmp Plenum, Ft6 |
| Jacketing Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Length - Feet | 1000 Ft. |
| Length | 1000 Ft. |
| Material | Bare Copper |
| Nec Rating | Ul Listed Art 800 Plenum |
| Nominal Od | 0.142 In. |
| Package | Reel |
| Plenum | Plenum |
| Product Type | Security And Sound Commercial Audio Cable |
| Pulling Force | 37 Lb. |
| Resistance | 10.3 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100% Bi-Laminate (Aluminum/Poly) Tape, Tinned Copper Drainwire |
| Shield Type | Beldfoil Tape |
| Shielding | Shielded |
| Temperature Rating | 0 To 75 C |
| Thickness | 0.015 In. |
| Type | Security And Commercial Audio Cable |
| Voltage | 300 Vac |
| Environmental Suitability | Indoor - Plenum, Indoor |
