Brand: Belden
|
SKU:
B6500FE-0-U1000

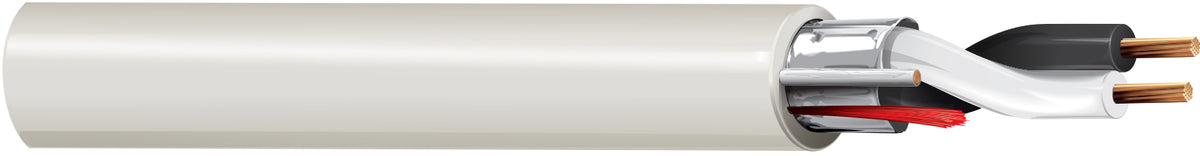

Belden 6500FE 010U1000 | Audio Cable, 22 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$245.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6500FE 010U1000 | Audio Cable, 22 AWG, Stranded, 2, Bare Cop...
Regular price
$245.00
Unit price
Brand: Belden
|
SKU:
B6500FE-0-U1000
Regular price
$245.00
Unit price
Description
Description
Belden 6500FE 010U1000 | Audio Cable, 22 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Audio Cable; 22 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 7x30 Str; Black Flamarrest PVC with Ripcord Jacket; Flamarrest PVC Insulation; Plenum, CMP; 300 V; Black; Tape; Bi-Laminate Shield; 0 to 75 C; 2.8 A
Specifications
Specifications
Belden - 6500FE 010U1000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 6500FE 010U1000 - Applications
- Intercom/PA Systems and Sound/Audio Systems
Belden - 6500FE 010U1000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 6500FE 010U1000 |
| Item Description | Audio Cable, 22 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 2.8 A |
| Bend Radius | 1.3 In. |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Capacitance | 55 Pf/Ft. |
| Color Code | Black |
| Color | Black |
| Cond. Type | Stranded Conductor |
| Conductor Count | 2 Conductor |
| Conductor Gauge (Awg) | 22 Awg |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7X30 Str |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Insulation Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Insulation | Flamarrest Pvc |
| Jacket Color | Black |
| Jacket Material | Flamarrest Pvc With Ripcord |
| Jacket Rating | Plenum, Cmp |
| Jacketing Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Length | 1000 Ft. |
| Material | Bare Copper |
| Nec Rating | Ul Listed Art 800 Plenum |
| Nominal Od | 0.128 In. |
| Plenum | Plenum |
| Product Type | Security And Sound Commercial Audio Cable |
| Pulling Force | 24 Lb. |
| Resistance | 16.4 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | Bi-Laminate |
| Shield Type | Foil Shielded - Alum/Mylar |
| Temperature Rating | 0 To 75 C |
| Thickness | 0.015 In. |
| Voltage | 300 Vac |
| Environmental Suitability | Indoor - Plenum, Indoor |
