Belden 8237 0101000 | Coaxial Cable, RG8, 1000 ft. L, Braid, Black,...
Regular price
$3,905.21
Unit price
Brand: Belden
|
SKU:
B8237
Regular price
$3,905.21
Unit price
Description
Description

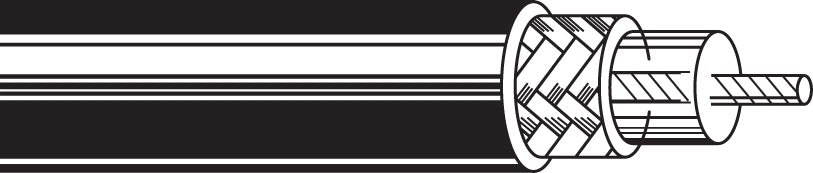

Belden 8237 0101000 | Coaxial Cable, RG8, 1000 ft. L, Braid, Black, PVC Jacket
Coaxial Cable; RG8; 1000 ft. Length; Braid; Black PVC Jacket; Bare Copper; 13 AWG; PE Insulation; Bare Copper Shield; 0.403 in. Nominal Outside Diameter; -30 to +75 C; CMH; 50 Ohm; Indoor/Outdoor; 4 in.; 1000MHz; 147 lb.
Specifications
Specifications
Belden - 8237 0101000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 8237 0101000 - Applications
- Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Belden - 8237 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8237 0101000 |
| Item Description | Coaxial Cable, RG8, 1000 ft. L, Braid, Black, PVC Jacket |
| Bend Radius | 4-1/2 In. |
| Braid % | 97% Braid Coverage |
| Braid Material | Bare Copper |
| Csa | Ft1 Vertical Flame Test |
| Cable Jacket O.D. | 0.405 |
| Cable/Wire Type | Rg8 |
| Capacitance | 30.8 Pf/Ft. |
| Coax Type | Rg-8 |
| Conductor Count | 1 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 13 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Dielectric Material | Pe-Polyethylene (Solid) |
| Dielectric Type/Jkt. | Pe Pvc |
| Duty Rating | Light |
| Enclosure Type | Lanscape (Cch/Wch) |
| Fire Rating | Low Smoke Zero Halogen (Lszh) |
| Flooded | No, Not Flooded Over Braid |
| Frequency | 1000Mhz |
| Impedance | 52 Ohm |
| Indoor Or Outdoor Use | Indoor/Outdoor |
| Insulation Diameter | 0.285 In. |
| Insulation Material | Polyethylene |
| Jacket Color | Black |
| Jacket Material | Polyvinyl Chloride |
| Jacket Rating | Cmh |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Wireless Microphones, 2-Way Radios, Amateur (Ham) Radio, Low Power Fm, Gps, Rfid, Transmission |
| Nec Rating | Cmh |
| Nom. O.D. (In.) | 0.405 |
| Nominal Cable Diameter | 0.403 In. |
| Nominal O.D. | 10.24 Mm |
| Operating Frequency | 1 To 4000Mhz |
| Package Type | Crate Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Wireless Transmission Coaxial Cable |
| Pulling Tension | 190 Lb. |
| Rg Type | Rg-8 |
| Rating | Cmh |
| Resistance | 1.8 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Shield Coverage | 97% Bc Braid |
| Shield Material | 95% Bare Copper Braid |
| Shield Type | Braid |
| Shield | 95% Bc Braid |
| Spec/Stnd Nec | Cmh |
| Temperature Rating - Max | 75 Deg C |
| Temperature Rating | -40 To +75 C |
| Tensile Strength | 147 Lbs. |
| Voltage Rating | 300 V |
| Voltage | 300 V, 3700 V |
| Weight Lbs./1,000 Ft. | 114 |
| Wire Size | 13 Awg Str (7X21) Bc |
| Environmental Suitability | Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire |
