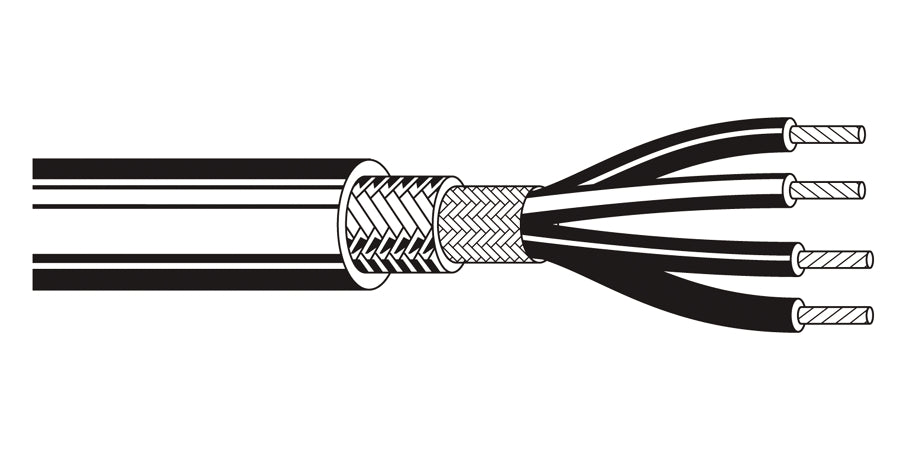

Belden 8404 0601000 | Microphone Cable, 20 AWG, Stranded Conductor,...
Description
Description
The cables that connect low-level microphones and musical instruments for permanent or semi-permanent installation can make the difference between poor and excellent sound quality. Belden offers a variety of high-performance analog and digital microphone cables that can withstand constant handling and use, as well as deployable microphone cables for harsh environments, such as onsite reporting and outdoor concert venues. Belden also offers a variety of specialty microphone cables, including the first CMP-rated microphone cable. Various specialty cables are available with features such as small diameters, high flexibility and pulling tensions of 250lb. Whether it's in the studio or a live performance, Belden microphone cables are designed to protect audio integrity.
Specifications
Specifications
Belden - 8404 0601000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Microphone Cable
Belden - 8404 0601000 - Applications
- Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments
Belden - 8404 0601000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8404 0601000 |
| Item Description | Microphone Cable, 20 AWG, Stranded Conductor, 4, 1000 ft. L |
| Amperage | 3.1 A |
| Bend Radius | 2.5 In. |
| Capacitance | 23 Pf/Ft. |
| Conductor Count | 4 Conductor |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Overall Braid Shield |
| Impedance | 45 Ohm |
| Insulation Color | Clear, Black, Red, Green |
| Insulation Material | Polyethylene |
| Insulation Thickness | 0.016 In. |
| Jacket Color | Green |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Thickness | 0.032 In. |
| Length | 1000 Ft. |
| Material | Tinned High-Conductivity Copper Conductors |
| Nom. O.D. (In.) | 0.252 |
| Nominal O.D. | 0.252 In. |
| Number Of Conductors | 4 |
| Outside Diameter | 0.252 In. |
| Package Type | Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Star Quad Microphone Cable |
| Resistance | 10.2 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | Tinned-Cu 85 Pct |
| Shield Type | Braided |
| Shielded | Stp-Shielded Twisted Pair |
| Stranding | 19X32 Str |
| Temperature Rating | -20 To 60 Degree C (-4 To 140 Degree F) |
| Type | Low-Impedance Cable |
| Voltage | 300 V |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
