Belden 8450 0081000 | Instrumentation Cable, 22 AWG, Solid, 1 Pair,...
Regular price
$692.45
Unit price
Brand: Belden
|
SKU:
B8450-8
Regular price
$692.45
Unit price
Description
Description

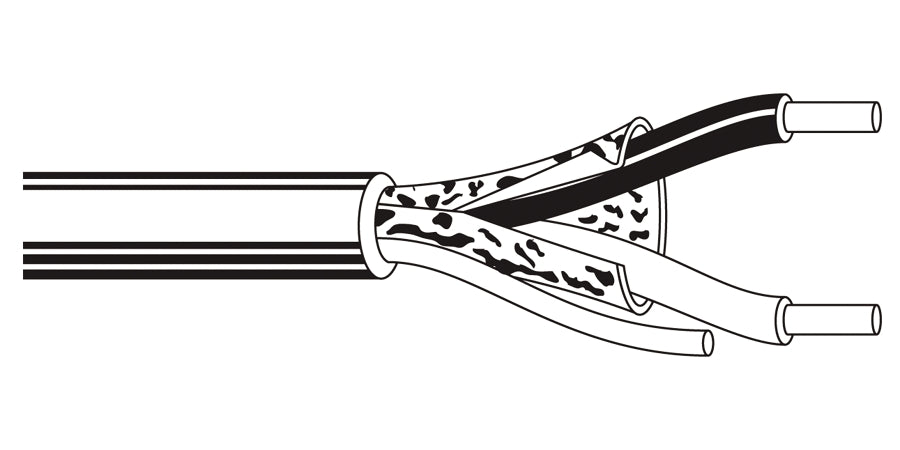

Belden 8450 0081000 | Instrumentation Cable, 22 AWG, Solid, 1 Pair, Tinned Copper
Instrumentation Cable; 22 AWG; Solid; 1 Pair Conductor; Tinned Copper; 1000 ft. Length; Gray PVC Jacket; Polypropylene Insulation; CM; 300 V; Black and Red; Tape; Bi-Laminate Shield; -20 to +105 C; 0.018 in. Thickness; 40 Ohm
Specifications
Specifications
Belden - 8450 0081000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 8450 0081000 - Applications
- Low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Belden - 8450 0081000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8450 0081000 |
| Item Description | Instrumentation Cable, 22 AWG, Solid, 1 Pair, Tinned Copper |
| Amperage | 2.9 A |
| Bend Radius | 1-1/4 In. |
| Capacitance | 40 Pf/Ft. |
| Color Code | Black, Red |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 22 Awg |
| Conductor Type | Solid |
| Construction | Overall Shield &Amp Drain |
| Impedance | 40 Ohm |
| Inductance | 0.08 ?h/Ft. |
| Insulation Material | Pp-Polypropylene |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cm |
| Length | 1000 Ft. |
| Material | Tinned Or Coated Copper |
| Nec Rating | Ul Listed Art 800 |
| Nominal O.D. | 0.118 In. |
| Outside Diameter | 3Mm |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Audio And Instrumentation Cable |
| Pulling Force | 37 Lbs. |
| Resistance | 16.1 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | Bi-Laminate |
| Shield Type | Foil Shielded - Aluminum / Mylar |
| Shield | Overall Beldfoil, 100% Aluminum-Poly Bi-Laminate Tape |
| Temperature Rating | -20 To +80 C |
| Thickness | 0.018 In. |
| Voltage | 300 V |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
