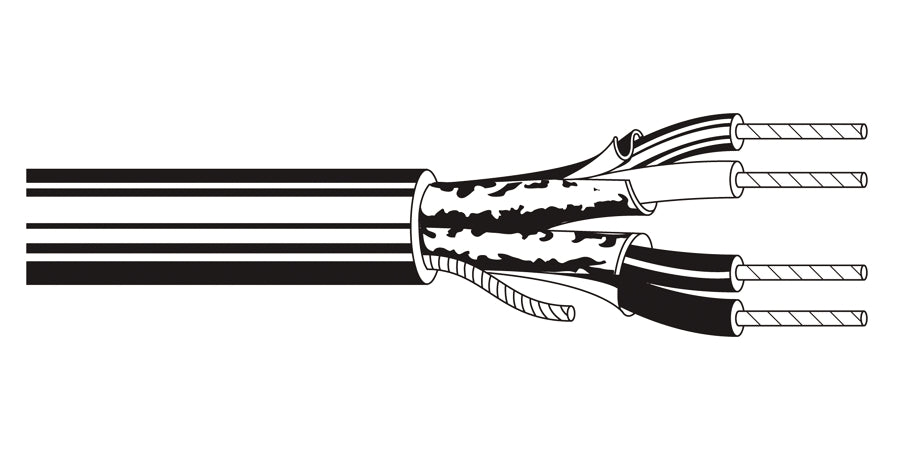

Belden 8723SB 0101000 | Instrumentation Cable, 22 AWG, Stranded, 2,...
Regular price
$1,411.44
Unit price
Brand: Belden
|
SKU:
B8723SB
Regular price
$1,411.44
Unit price
Description
Description
Belden 8723SB 0101000 | Instrumentation Cable, 22 AWG, Stranded, 2, Tinned Copper
Instrumentation Cable; 22 AWG; Stranded; 2 Conductor; Tinned Copper; 1000 ft. Length; 7x30 Str; Black LSZH Jacket; Polypropylene Insulation; 300 V; Black, White, Brown, Green, Red, Yellow, Blue; Tape; Bi-Laminate Shield; 45 Ohm
Specifications
Specifications
Belden - 8723SB 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 8723SB 0101000 - Applications
- shipboard applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring
Belden - 8723SB 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8723SB 0101000 |
| Item Description | Instrumentation Cable, 22 AWG, Stranded, 2, Tinned Copper |
| Amperage | 2.8 A |
| Approval Listings | Ul 1581 Vertical Tray, 1685 Ft4, Iso/Iec 60332-1,60332-3-22 (Category A), Ieee 1202, Nec/Cec/(Ul) - Cmg-Ls, Ieee Std. 45 Clause 23, Ul 444, Abs Type Approval Certificate 05-Hs500072B |
| Bend Radius | 2 In. |
| Csa | Ft-4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 35 Pf/Ft. |
| Color Code | Black, White, Brown, Green, Red, Yellow, Blue |
| Conductor Count | 2 Pair |
| Conductor Material | Stranded Tinned Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Individual/Foil Side &Amp Drain Out |
| Impedance | 45 Ohm |
| Insulation Material | Pp-Polypropylene |
| Jacket Color | Black |
| Jacket Material | Lszh-Low Smoke Zero Halogen |
| Jacket Rating | Cmg |
| Length | 1000 Ft. |
| Material | Tinned Or Coated Copper |
| Nec Rating | Nec Cmg |
| Nominal O.D. | 0.196 In. |
| Package Type | Reel |
| Plenum | Low Smoke Zero Halogen (Lszh) |
| Product Type | Audio And Instrumentation Cable |
| Pulling Force | 42 Lbs. |
| Resistance | 18.2 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 100 Percent Aluminum Foil-Polyester |
| Shield Type | 100 Percent Beldfoil (Z-Fold) |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | 105 Deg C |
| Thickness | 0.034 In. |
| Type | Audio/Control/Instrumentation Cable |
| Voltage | 300 V |
| Wattage | 9.7 W Max, 5.3 W Typical At 12 To 28 Vdc, 12.95 W Max, 5.9 W Typical Poe, 19.7 W Max, 5.3 W Typical At 12 To 28 Vdc, 20.3 W Max, 5.9 W Typical Poe With Axis Fixed Box Ir Illuminator Kit |
| Environmental Suitability | Indoor/Outdoor, Indoor, Non-Halogenated |
