Belden 8725 0601000 | Instrumentation Cable, 20 AWG, Stranded, 4 Pa...
Regular price
$8,530.85
Unit price
Brand: Belden
|
SKU:
B8725
Regular price
$8,530.85
Unit price
Description
Description

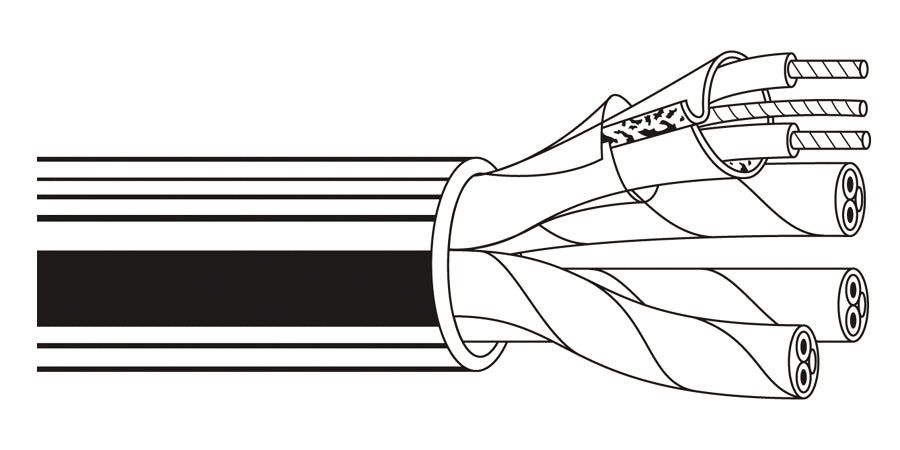

Belden 8725 0601000 | Instrumentation Cable, 20 AWG, Stranded, 4 Pair, 1000 ft. L
Instrumentation Cable; 20 AWG; Stranded; 4 Pair Conductor; Tinned Copper; 1000 ft. Length; 7x28 Str; Chrome PVC Jacket; Polypropylene Insulation; CM; 400 V; Tape; Bi-Laminate Shield; -40 to +105 C; 0.03 in. Thickness; 56 Ohm
Specifications
Specifications
Belden - 8725 0601000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 8725 0601000 - Applications
- Low voltage analog signals (4-20ma, 0-10v, ...); Low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Belden - 8725 0601000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8725 0601000 |
| Item Description | Instrumentation Cable, 20 AWG, Stranded, 4 Pair, 1000 ft. L |
| Amperage | 3.04 A |
| Approval Listings | Ce-Marked, Weee Compliant |
| Bend Radius | 4 In. |
| Capacitance | 27 Pf/Ft. |
| Color Code | Red And Black, Green And White, White/Red Stripe And White/Black Stripe, White/Green Stripe And White/Yellow Stripe |
| Conductor Count | 4 Pair |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Individual/Foil Side &Amp Drain Out |
| Impedance | 56 Ohm |
| Insulation Color | Green; White |
| Insulation Material | Pp-Polypropylene |
| Insulation Thickness | 0.015 In. |
| Jacket Color | Chrome |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cm |
| Length | 1000 Ft. |
| Material | Tinned Or Coated Copper |
| Nom. O.D. (In.) | 0.336 |
| Nominal O.D. | 0.336 In. |
| Number Of Pairs | 4 |
| Package Type | Crate Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Audio, Communication And Instrumentation Cable |
| Pulling Force | 109.9 Lbs. |
| Resistance | 11.3 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | Bi-Laminate |
| Shield Type | Individual Foil |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -40 To 105 Deg C |
| Thickness | 0.03 In. |
| Voltage | 400 Vac |
| Weight Lbs./1,000 Ft. | 74 |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
