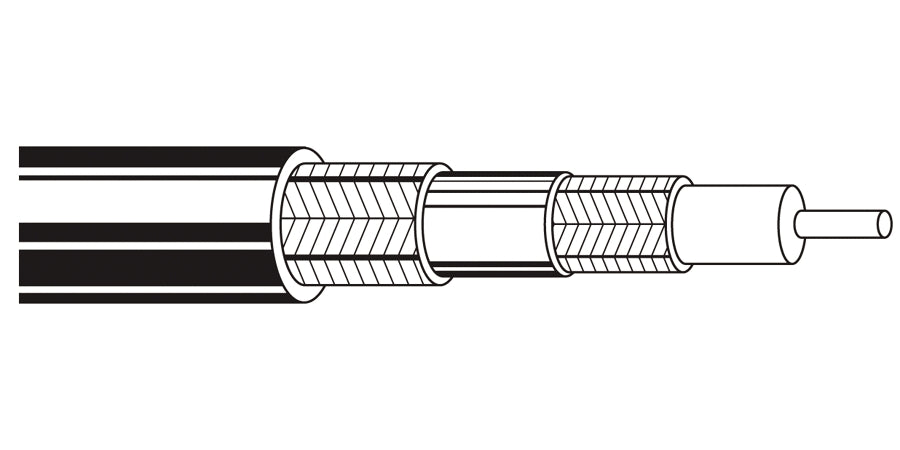

Belden 88232 0101000 | Video Cable, RG59, 20 AWG, Solid, Bare Coppe...
Regular price
$11,821.08
Unit price
Brand: Belden
|
SKU:
B88232
Regular price
$11,821.08
Unit price
Description
Description
Belden 88232 0101000 | Video Cable, RG59, 20 AWG, Solid, Bare Copper, 1000 ft. L
Video Cable; RG59; 20 AWG; Solid; Bare Copper; 1000 ft. Length; Black FEP Jacket; 850 to 3000MHz; FEP Insulation; CMP; 300 V; Braid; Bare Copper Shield; -40 to +200 C; 0.245 in. Nominal Outside Diameter; 106 lb.; 75 Ohm
Specifications
Specifications
Belden - 88232 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 88232 0101000 - Applications
- Analog Video; Interconnect camera to CCU (camera control unit)
Belden - 88232 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 88232 0101000 |
| Item Description | Video Cable, RG59, 20 AWG, Solid, Bare Copper, 1000 ft. L |
| Bend Radius | 2.5 In. |
| Braid % | 95% Braid Coverage |
| Braid Material | Bare Copper |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Cable Jacket O.D. | 0.245 |
| Cable/Wire Type | Rg59 |
| Capacitance | 16.9 Pf/Ft. |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.025 In. |
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg |
| Conductor Type | Solid |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Enclosure Type | Lanscape (Cch/Wch) |
| Flooded | No, Not Flooded Over Braid |
| Frequency Rating | 850 To 3000Mhz |
| Impedance | 75 Ohm |
| Insulation Diameter | 0.140 In. |
| Insulation Material | Ffep-Foamed Fluorinated Ethylene Propylene |
| Jacket Color | Black |
| Jacket Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Rating | Cmp |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Analog Video, Interconnect Camera To Ccu, Traix |
| Nominal O.D. | 6.22 Mm |
| Notes/Special Features | Triax |
| Outdoor | Yes Is Outdoor Grade Material |
| Package Type | Crate Reel |
| Plenum | Plenum |
| Product Type | Triax Video Cable |
| Pulling Force | 106 Lbs. |
| Rg Type | Rg-59 |
| Rating | Cmp |
| Resistance | 10.0 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Braid Only |
| Shield Material | 95% Bare Copper Braid |
| Shield Type | Braid |
| Shield | 2-95% Bc Braids |
| Spec/Stnd Nec | Ul Listed Art 800 Plenum |
| Temperature Rating - Max | 200 Deg C |
| Temperature Rating | -40 To +200 C |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 62 |
| Environmental Suitability | Indoor - Plenum, Indoor |
