Belden 89259 0101000 | Video Cable, RG59, 22 AWG, Stranded, Bare Co...
Regular price
$6,920.83
Unit price
Brand: Belden
|
SKU:
B89259
Regular price
$6,920.83
Unit price
Description
Description

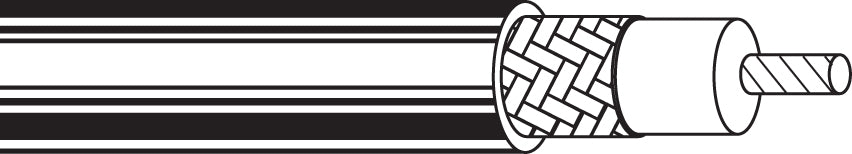

Belden 89259 0101000 | Video Cable, RG59, 22 AWG, Stranded, Bare Copper, 1000 ft. L
Video Cable; RG59; 22 AWG; Stranded; Bare Copper; 1000 ft. Length; 7x30 Str; Black FEP Jacket; FEP Insulation; CMP; 300 V; Braid; Bare Copper Shield; -70 to +200 C; 0.193 in. Nominal Outside Diameter; 52 lb.; 18.0 pF/ft.
Specifications
Specifications
Belden - 89259 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 89259 0101000 - Applications
- Standard analog video
Belden - 89259 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 89259 0101000 |
| Item Description | Video Cable, RG59, 22 AWG, Stranded, Bare Copper, 1000 ft. L |
| Bend Radius | 1.9 In. |
| Braid % | 95% Braid Coverage |
| Braid Material | Tinned Copper |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Cable Jacket O.D. | 0.193 |
| Cable/Wire Type | Rg59 |
| Capacitance | 18.0 Pf/Ft. |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.04 In. |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Flooded | No, Not Flooded Over Braid |
| Impedance | 75 Ohm |
| Insulation Diameter | 0.135 In. |
| Insulation Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Color | Black |
| Jacket Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Rating | Cmp |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Analog Video Cable |
| Nominal O.D. | 0.193 In. |
| Outdoor | Yes Is Outdoor Grade Material |
| Package Type | Crate Reel Put-Up |
| Plenum | Plenum |
| Product Type | Analog Coaxial Video Cable |
| Pulling Force | 52 Lbs. |
| Rg Type | Rg-59 |
| Rating | Cmp |
| Resistance | 15 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Both, Braid Over Foil |
| Shield Material | Bc Braid 95 Percent |
| Shield Type | Braid |
| Shield | 95% Bc Braid |
| Spec/Stnd Nec | Ul Listed Art 800 Plenum |
| Temperature Rating - Max | 200 Deg C |
| Temperature Rating | -70 To 200 C |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 32 |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire |
