Belden 9221 010500 | Video Cable, 30 AWG, Stranded, 1, Tinned Coppe...
Regular price
$1,114.90
Unit price
Brand: Belden
|
SKU:
B9221
Regular price
$1,114.90
Unit price
Description
Description

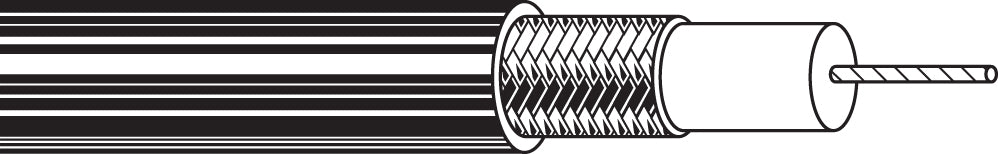

Belden 9221 010500 | Video Cable, 30 AWG, Stranded, 1, Tinned Copper, 1000 ft. L
Video Cable; 30 AWG; Stranded; 1 Conductor; Tinned Copper; 1000 ft. Length; 7x38 Str; Black PVC Jacket; 1000MHz; PE Insulation; 30 V; Braid; Tinned Copper Shield; -40 to +60 C; 0.097 in. Nominal Outside Diameter; 14 lb.
Specifications
Specifications
Belden - 9221 010500 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 9221 010500 - Applications
- Analog video, Composite Video, Video Distribution
Belden - 9221 010500 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 9221 010500 |
| Item Description | Video Cable, 30 AWG, Stranded, 1, Tinned Copper, 1000 ft. L |
| Approx. Wt. Lb./1,000 Ft. | 9 |
| Bend Radius | 1/4 In. |
| Braid % | 89% Braid Coverage |
| Braid Matl | Bare Copper |
| Cable Type | Rg-59 Coax Cable |
| Capacitance | 17.3 Pf/Ft. |
| Coax Construction | Coaxial |
| Coax Type | Mini 75 Ohm Singles &Amp Bundles |
| Conductor Awg | 30 Gauge Awg |
| Conductor Count | 1 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 30 Awg |
| Conductor Stranding | 7X38 Str |
| Conductor Stranding/Dia. Awg &Amp Type | 7/0.012/30/Tc |
| Conductor Type | Stranded |
| Dielectric Material | Hdpe-High Density Polyethylene |
| Flooded | No Not Flooded Over Braid |
| Frequency Rating | 1000Mhz |
| Imped. Ohms | 75 |
| Impedance | 75 Ohm |
| Indoor Or Outdoor Use | Indoor |
| Inductance | 0.097 µh/Ft. |
| Insulation Material (O.D. In.) | Fhdpe/0.058 |
| Insulation Material | Fpe - Foamed Polyethylene |
| Insulation | Fhdpe |
| Jacket Color | Black |
| Jacket Material Color (O.D. In.) | Pvc/Blk/0.097 |
| Jacket Material | Pvc |
| Jacket Rating Application | Non-Plenum Rated |
| Jacket Rating Code | Cm, Cmg, Cmx |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Sdi |
| Material | Tinned Copper |
| Nominal Impedance | 75 O |
| Nominal Od | 2.46Mm |
| Operating Frequency | 1 To 1000 Mhz |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Analog Video Cable |
| Pulling Force | 14 Lb. |
| Resistance | 100 Ohm./1000 Ft. Dc |
| Rg Type | Mini |
| Rohs Compliant | Yes |
| Screen/Shield Type | Braid Only |
| Shield Material | 90% Bare Tinned Copper Braid |
| Shield Type | Braid |
| Shield | 89% Tc Braid |
| Spec/Stnd Nec | Not Listed By Ul Under Nec |
| Temperature Rating - Max | 60°C |
| Temperature Rating | -40 To +60 C |
| Voltage Rating | 30 V |
| Voltage | 30 V |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor |
